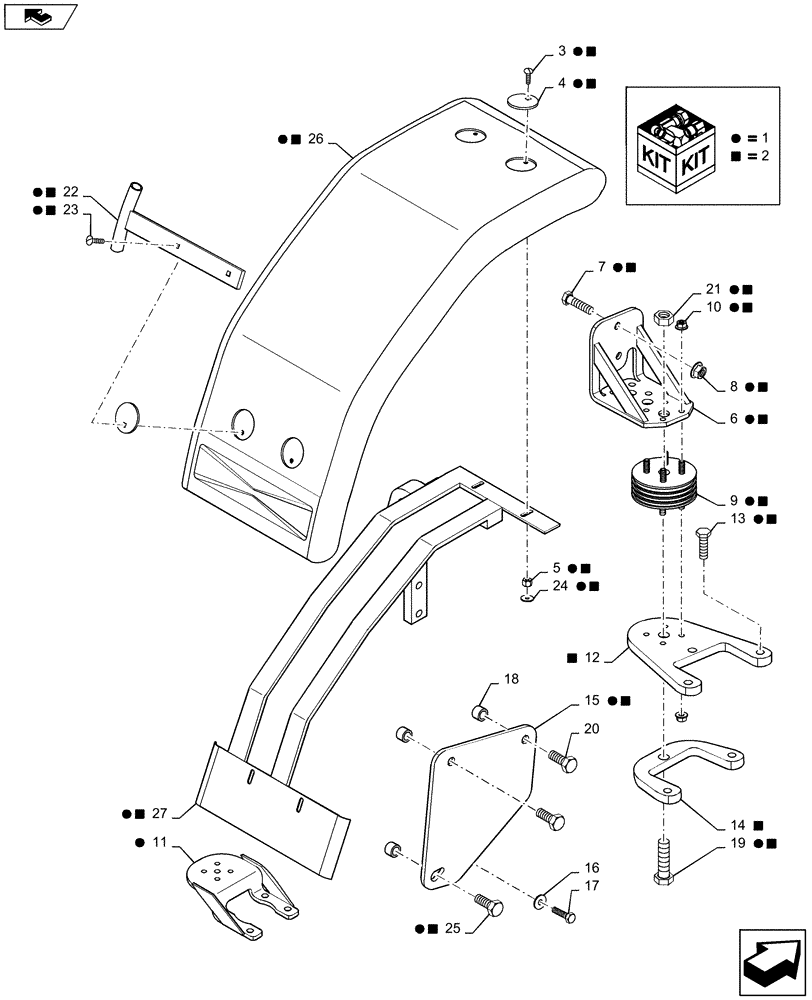

Запчасти Case IH MAGNUM 260 (90.116.AC[01]) - DANA AXLE - FRONT FENDER ASSY - NARROW 480MM - BSN ZDRD02583 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

719686036

DIA KIT, TRACTOR

Fender, Narrow, 10 & 12 Bolt; Incl 3 - 11, 13 -15, 18, 20 - 26

1шт.

2

719686046

DIA KIT, TRACTOR

Fender, Narrow, CL 5; Incl 3 - 10, 12 - 15, 18, 20 - 26

1шт.

3

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

4шт.

4

1340559C2

SQ HOLE WASHER,8.71mm ID x 63.5mm OD x 4.76mm Thk

2-1/2

8шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

6

87427813

SUPPORT

2шт.

7

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

8

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

9

226690A2

RUBBER BUMPER

2шт.

10

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

11

87530576

SUPPORT

If Used

2шт.

12

87716500

SUPPORT

If Used

2шт.

13

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

If Used

8шт.

13

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

If Used

6шт.

14

87716498

SUPPORT

If Used

2шт.

15

84497784

PAD

If used

2шт.

16

495-21050

WASHER,7/16"

If used

2шт.

17

120080

BOLT,Hex, M12 x 45, 8.8

If used

2шт.

18

87036419

SPACER,26.64mm ID x 33.4mm OD x 19.05mm L

If used

6шт.

19

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

20

9847023

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

If Used

4шт.

21

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

22

84283185

FENDER

2шт.

23

612-7

CARRIAGE BOLT,M8 x 40mm, Class 4.6

Stop Bar

4шт.

24

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8шт.

25

614-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

6шт.

26

1340664C1

FENDER

Narrow

2шт.

27

244759A2

SUPPORT ASSY.

Right hand (Shown)

1шт.

27

244760A2

SUPPORT ASSY.

Left Hand

1шт.
