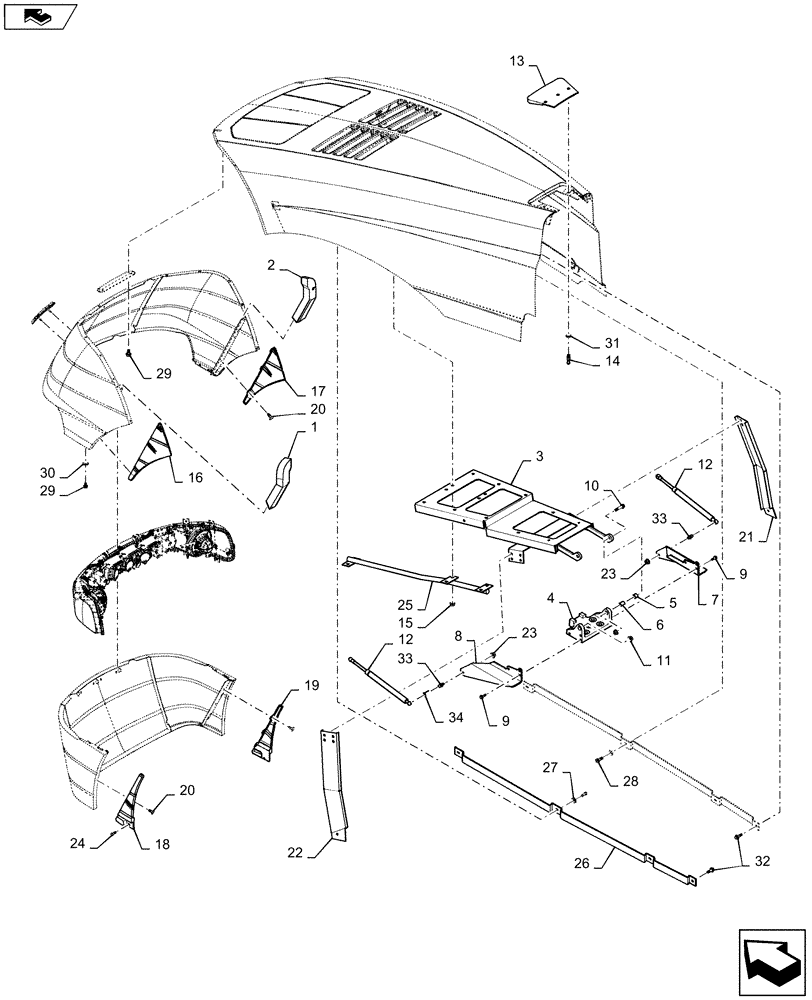

Запчасти Case IH MAGNUM 260 (90.100.AU[02]) - HOOD, TILTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84297344

FOAM INSULATION

Hood Left Side

1шт.

2

84297967

FOAM INSULATION

Hood Right Side

1шт.

3

84343825

HINGE

Hood Assy

1шт.

4

84259897

BRACKET, SUPPORTING

Hood Mount Assy

1шт.

5

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

For Hood Mount

2шт.

6

87343713

BUSHING,12.95mm ID x 19mm OD x 28mm L

Pivot for Hood Mount

2шт.

7

84324301

SUPPORT

Right Hand Strut Mounting

1шт.

8

84324302

SUPPORT

Left Hand Strut Mounting

1шт.

9

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

6шт.

10

844-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 8.8

2шт.

11

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

2шт.

12

84286709

GAS STRUT

"Hood Spring"

2шт.

13

84263960

ACCESS COVER

Hood

1шт.

14

1977929C1

STUD,M5 x 0.8

Ball for Hood Access Cover

2шт.

15

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

16шт.

16

84287791

PANEL

Upper Left

1шт.

17

84287797

PANEL

Upper Right

1шт.

18

84287798

PANEL

Left Side

1шт.

19

84287799

PANEL

Right Side

1шт.

20

369929A1

FASTENER

Christmas Tree

10шт.

21

84401397

BRACKET

Right Hand Rear Hood Support

1шт.

22

84401398

BRACKET

Left Hand Rear Hood Support

1шт.

23

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

24

725479

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13

4.8 x 13 C Pan

2шт.

25

84370436

BRACKET

Stiffener

1шт.

26

84399318

MOUNTING PLATE

Hood Side Panel

2шт.

27

86639316

WASHER,8.4mm ID x 20mm OD x 2mm Thk

8.4 x 20x 2

10шт.

28

87360874

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 8.8

M8 x 16 8.8

10шт.

29

781-24620

SELF-TAP SCREW,Hex Flg Hd, M6 x 20

12шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

31

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

32

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

33

87398921

BALL STUD,M10 x 1.5

4шт.

34

87521455

CLIP

16MM Ball Stud

4шт.
