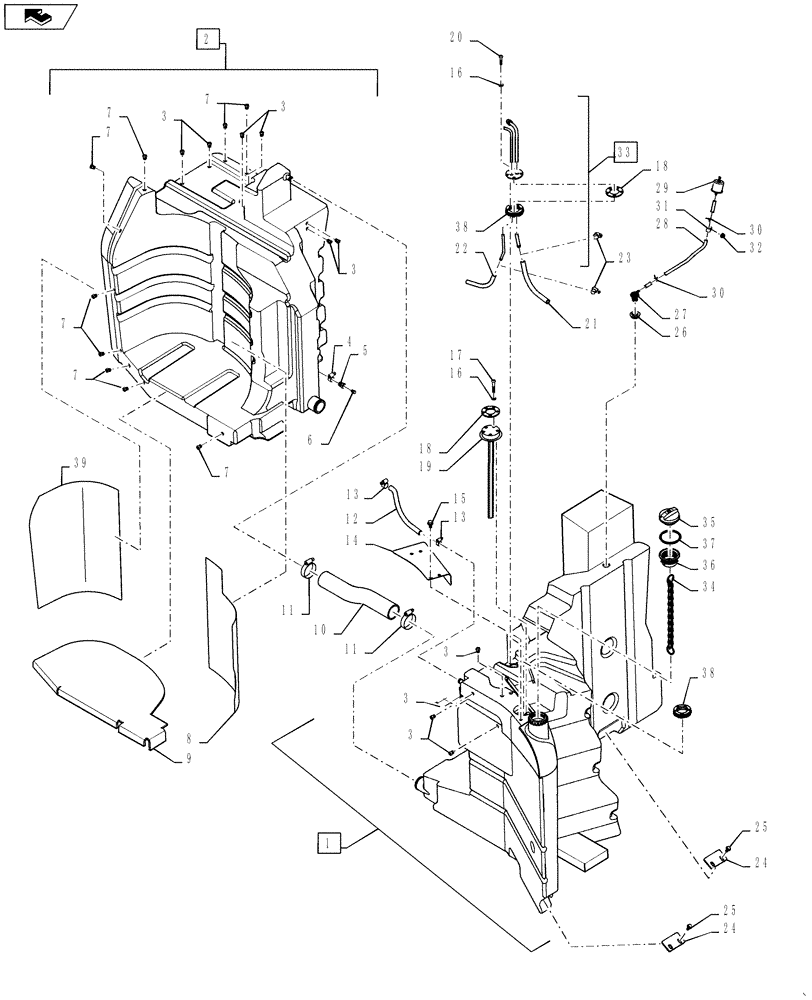

Запчасти Case IH MAGNUM 260 (10.216.AI[01]) - FUEL TANK & ASSOCIATED PARTS, POWERSHIFT, T4 (10) - ENGINE

1

84261985

FUEL TANK

Left Hand; Incl 3, 34 - 38

1шт.

2

84377607

FUEL TANK

Right hand, 88 Gallon; Incl 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

Insert; Incl in 1 - 2

20шт.

4

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

5

87752134

REDUCER

Bushing, 1/8 - 27 NPTF

1шт.

6

87752135

DRAIN PLUG

1шт.

7

NSS

NOT SOLD SEPARAT

Insert; Incl in 2

9шт.

8

84290920

HEAT SHIELD

Inner; Self Adhesive

1шт.

9

84373212

SHIELD

Bottom; Self Adhesive

1шт.

10

84361000

FUEL HOSE

Cross Over

1шт.

11

214-3248

HOSE CLAMP,57mm - 79mm

2шт.

12

84361003

FUEL HOSE

Air, Cross Over

1шт.

13

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

14

84236956

MOUNTING PLATE

Cover

1шт.

15

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

16

86509828

LOCK WASHER,M5

10шт.

17

440-11020

SCREW,Cross Pan Hd, #10-24 x 1 1/4"

5шт.

18

87537695

GASKET

2шт.

19

84237523

SENSOR

Fuel Tank Level, Serial Range: -ZDRD03248

1шт.

19

47416695

SENDER UNIT

Fuel Tank Level, Start Serial: ZDRD03249

1шт.

20

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

5шт.

21

84197988

FUEL HOSE

1шт.

22

84197990

FUEL HOSE

1шт.

23

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

24

243779A4

LARGE PLATE

3шт.

25

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

6шт.

26

255094A1

GROMMET

1шт.

27

275800A1

VALVE STEM

1шт.

28

275801A1

FUEL HOSE

Roll Over Valve Vent

1шт.

29

87433010

BREATHER

1шт.

30

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

31

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

32

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

33

84194645

PIPE

Fuel Supply/Return

1шт.

34

84546017

CHAIN (AG)

Fuel Tank Tether Chain Assy

1шт.

35

87731275

CAP

Non-Vented; Comes With 2 Keys That Are NSS

1шт.

36

87731276

INSERT

Fuel Filler Neck, NA

1шт.

36

NSS

NOT SOLD SEPARAT

INSERT, Fuel Filler Neck, EU; Incl with 1

1шт.

37

87751639

O-RING

Fuel Filler Neck Insert, NA

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING, Fuel Filler Neck Insert, EU; Incl with 1

1шт.

38

NSS

NOT SOLD SEPARAT

Fuel Sender; Incl with 1

2шт.

39

84290919

HEAT SHIELD

Outer; Self Adhesive

1шт.

40

87675525

SCREW,BTN HD, M8 x 1.25 x 20mm, Cl 12.9

M8 x 20 12.9

9шт.
