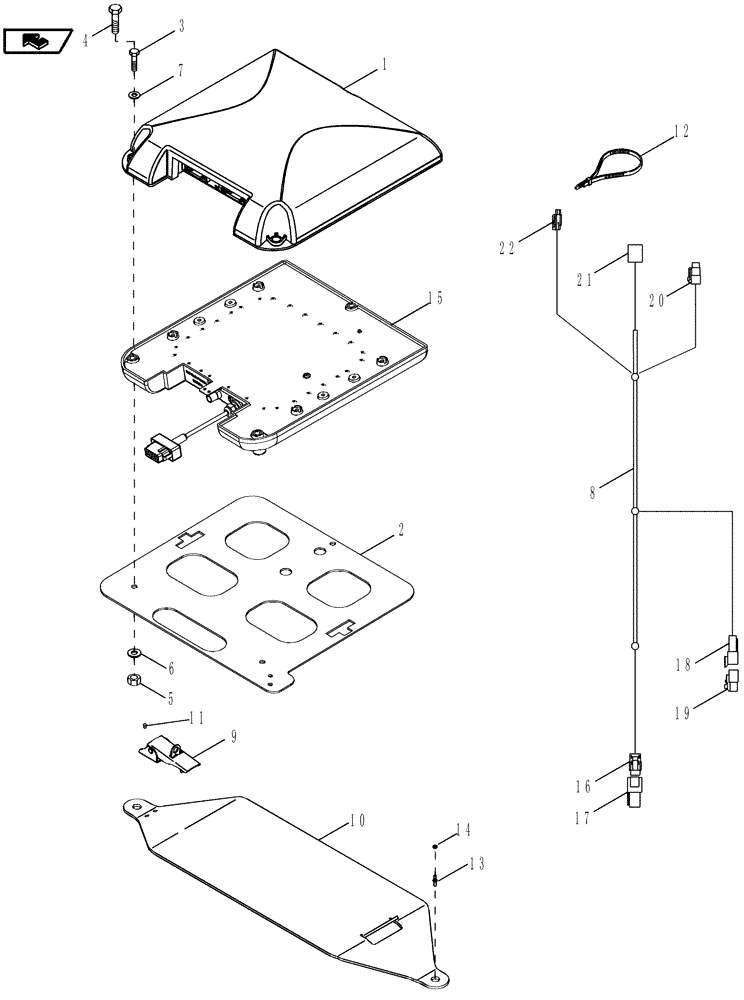

Запчасти Case IH MAGNUM 260 (55.911.AA[01]) - GPS RECEIVER & MOUNTING - BSN ZCRD04265 (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case IH MAGNUM 260 - (55.911.AA[01]) - GPS RECEIVER & MOUNTING - BSN ZCRD04265 (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/419071.png)
№
Артикул
Название
Примечание
Количество
1
84148119
MODULE
GPS Receiver, 262 WAAS/EGNOS/VBS
1шт.
1
84574271R
REMAN ELECT CONTROL
MAGNUM 235, MAGNUM 260, MAGNUM 290, MAGNUM 315, MAGNUM 340, MAGNUM 370, All TIER 4A CVT, MAGNUM 235, MAGNUM 260, MAGNUM 290, MAGNUM 315, MAGNUM 340, All TIER 4A, All TRACTOR, BSN ZCRD04265, GPS Receiver, 262 WAAS/EGNOS/VBS, Reman for New PN 84148119
1шт.
1
84574271C
CORE-ELECTRONIC CONT
Return Number
1шт.
1
84148115
MODULE
GPS Receiver, 262 WAAS/EGNOS/VBS/HP/XP
1шт.
1
84574273R
REMAN ELECT CONTROL
MAGNUM 235, MAGNUM 260, MAGNUM 290, MAGNUM 315, MAGNUM 340, MAGNUM 370, All CVT, MAGNUM 235, MAGNUM 260, MAGNUM 290, MAGNUM 315, MAGNUM 340, All TRACTOR - TIER 4A , BSN ZCRD04265, GPS Receiver, 262 WAAS/EGNOS/VBS/HP/XP, Reman for New 84148115
1шт.
1
84574273C
CORE-ELECTRONIC CONT
Return Number
1шт.
2
87496985
MOUNTING PLATE
1шт.
3
86977786
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8
3шт.
4
338413
BOLT,Hex, M6 x 60mm, Cl 8.8
3шт.
5
86511444
FLANGE NUT,Hex, M6 x 1
3шт.
7
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
3шт.
9
87308870
LATCH
1шт.
10
87552885
BRACKET
1шт.
11
87308841
RIVET,Pop, 3.97mm OD x 10.79mm L
2шт.
12
86991009
CABLE TIE,222mm L, Nylon
CABLE STRAP
2шт.
13
84322608
STUD
2шт.
14
832-10408
NUT,M8 x 1.25, Cl 8.8
2шт.
15
87308224
MODULE
Ag RTK Radio (JOEY)
1шт.
16
223671A1
CONTACT HOUSING,Female, 12 Pin
GPS Antenna
1шт.
17
223672A1
MULTIPOLE CONNECTOR,Male, 12 Pin
Cavity Plug
1шт.
18
225294C1
ELEC CONNECTOR,Male, 3 Pin
Passive Terminator
1шт.
19
381414A1
TERMINAL CONNECTOR
Cavity Plug
1шт.
20
277904A1
ELEC CONNECTOR,Female, 4 Pin
Outside Autoguidance Harness
1шт.
21
87694153
CONTACT HOUSING,Female, 4 Cavities
Chassis or Midmount Valve Harness
1шт.
Выбрано товаров: 27
