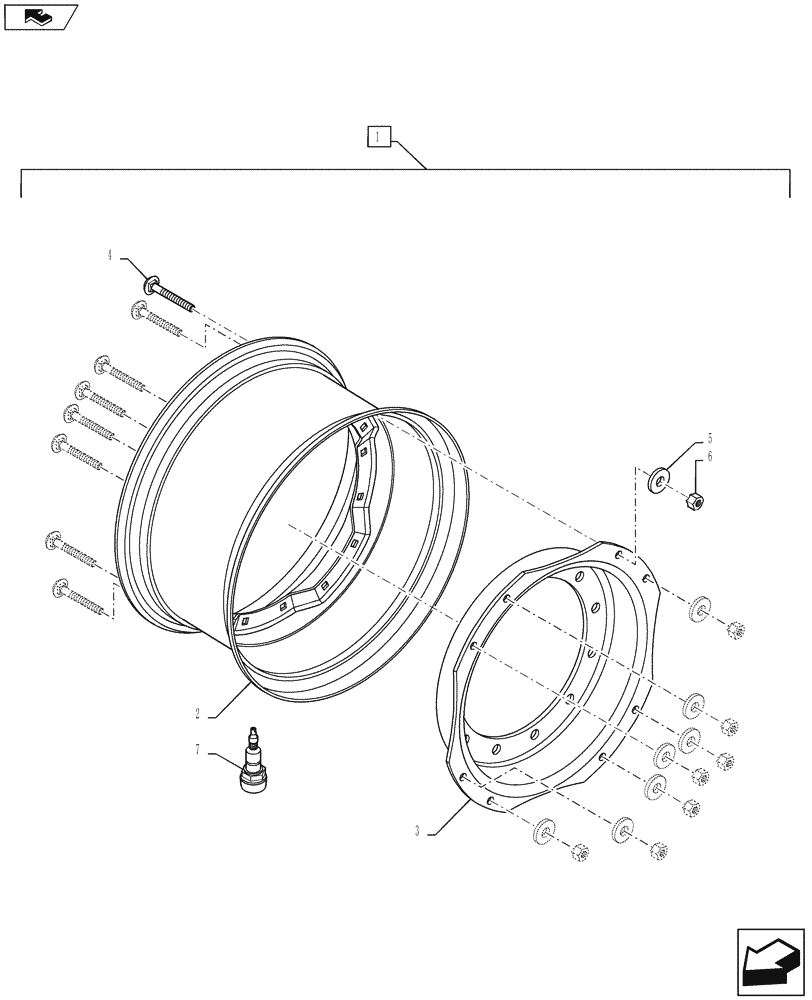

Запчасти Case IH MAGNUM 260 (44.511.AE[01]) - FRONT WHEEL ASSY, MFD, 12 BOLT HUB (44) - WHEELS

1

188347A2

WHEEL ASSY

W18Lx28, Inc. 2 - 6

2шт.

For Tires 600/65R28

1шт.

2

188350A2

RIM

1шт.

3

188328A1

WHEEL DISC

12 Bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

1

188335A1

WHEEL ASSY.

DWW13x30, Inc. 2 - 6

2шт.

For Tires 380/85R30, 14.9R30

1шт.

2

188338A1

RIM

1шт.

3

188328A1

WHEEL DISC

12 Bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

1

188339A1

WHEEL ASSY.

DWW15x30 Inc. 2 - 6

2шт.

For Tires 480/85R30, 480/70R30, 420/90R30, 16.9R30,

1шт.

2

188341A1

RIM

1шт.

3

188328A1

WHEEL DISC

12 Bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

1

259371A1

WHEEL ASSY.

W15x34, Inc. 2 - 6 (For Use With 40 KPH Transmission)

2шт.

For Tires 480/70R34, 540/65R34

1шт.

2

259416A1

RIM

1шт.

3

231999A1

DISC

12 Bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

2шт.

1

87401233

WHEEL

DW20x30, Inc. 2 - 6 (For Use With 40/50 KPH Transmission)

2шт.

For Tires 600/70R30

1шт.

2

87402304

RIM

1шт.

3

188328A1

WHEEL DISC

12 Bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

1

231997A1

WHEEL ASSY.

W13x34, Inc. 2 - 6

2шт.

For Tires 380/85R34, 420/85R34

1шт.

2

231998A1

RIM

1шт.

3

231999A1

DISC

12 Bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

7

86507333

VALVE STEM

2шт.
