(44.511.AD) - SPACERS - DUAL FRONT WHEELS - 12PT/16PT

Запчасти Case IH MAGNUM 260 (44.511.AD) - SPACERS - DUAL FRONT WHEELS - 12PT/16PT (44) - WHEELS

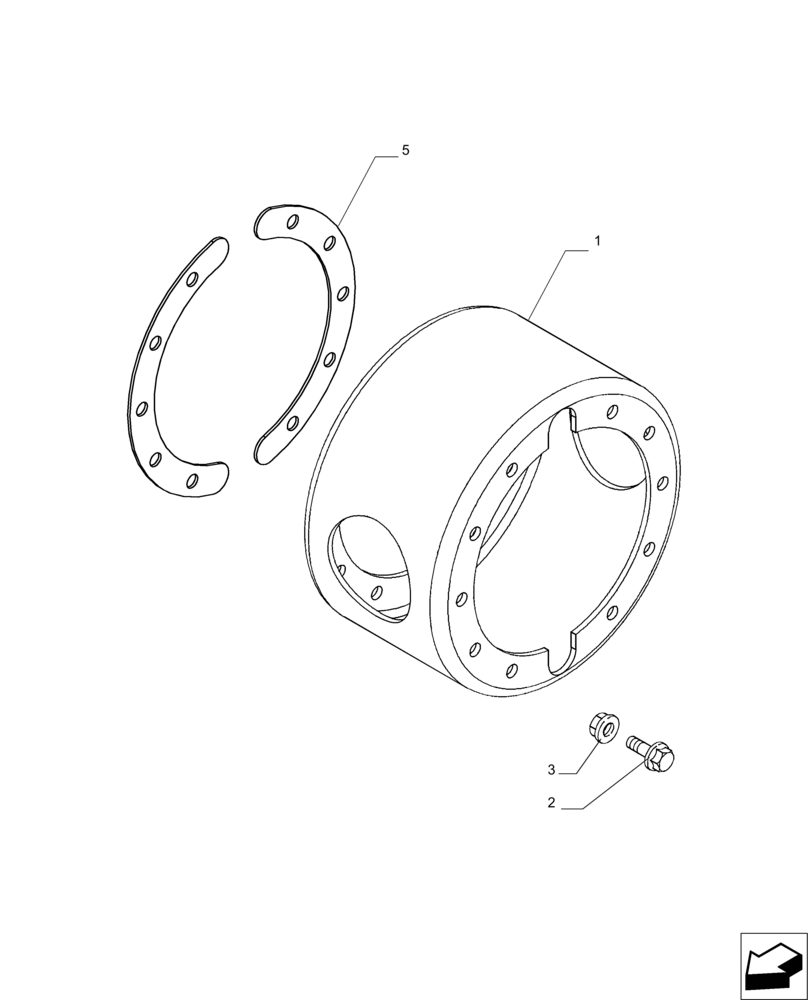

Схема запчастей Case IH MAGNUM 260 - (44.511.AD) - SPACERS - DUAL FRONT WHEELS - 12PT/16PT (44) - WHEELS
3
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84136587

SPACER

12 Inch, 12 Bolt Spacer Only - 10 Bolt Not Offered, Black

2шт.

1

84136588

SPACER,374.75mm ID x 539.29mm OD x 400.1mm L

16 Inch, 12 Bolt Spacer Only - 10 Bolt Not Offered, Black

2шт.

2

283120A1

BOLT

M20 x 45

20шт.

3

253212A1

NUT,M20 x 1.5, Class 10

M20 - 1.5, Class 10

20шт.

5

365372A1

SHIM,374mm ID x 476mm OD x 4.78mm Thk

Used With 34 Inch Wheel Only

4шт.

Выбрано товаров: 5
