Запчасти Case IH MAGNUM 260 (41.200.AT[05]) - STEERING CYLINDER HYD. LINE, CLASS 4.5 (41) - STEERING

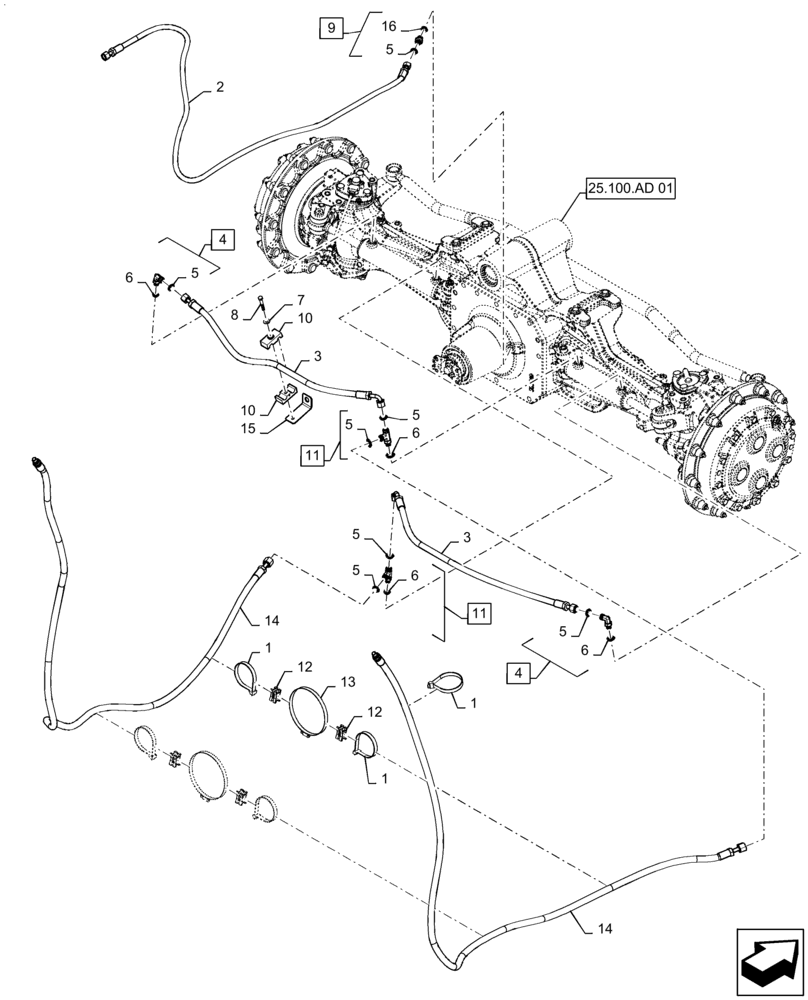

Схема запчастей Case IH MAGNUM 260 - (41.200.AT[05]) - STEERING CYLINDER HYD. LINE, CLASS 4.5 (41) - STEERING
9
5
11
5
5
6
11
6
4
3
25.100.ad 01
8
4
12
1
13
1
16
10
10
5
5
6
5
5
7
14
1
12
15
14
6
3
2

Артикул

Название

Примечание

Количество

1

86991007

CABLE TIE,509mm L

5шт.

2

84272390

FLEXIBLE HOSE,9.53mm ID x 2216mm L

Front Axle Diff Lock Supply

1шт.

3

84244142

HYDRAULIC HOSE

Steering Crossover, Cl 4.5 Axle

2шт.

4

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 5, 6

2шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

7шт.

6

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

8

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

9

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 5, 16

1шт.

10

87000150

CLAMP,15.869mm ID

Hydraulic Tube, 2 Hole, Ribbed

1шт.

11

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 5, 6

2шт.

12

86991001

SPACER

Dual Swivel Saddle

4шт.

13

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

14

84272391

FLEXIBLE HOSE,12.7mm ID x 2525mm L, SAE 100R17

Steering LH/RH, STC

2шт.

15

84420683

BRACKET

Crossover, Cl 4.5 Axle

1шт.

16

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 16
