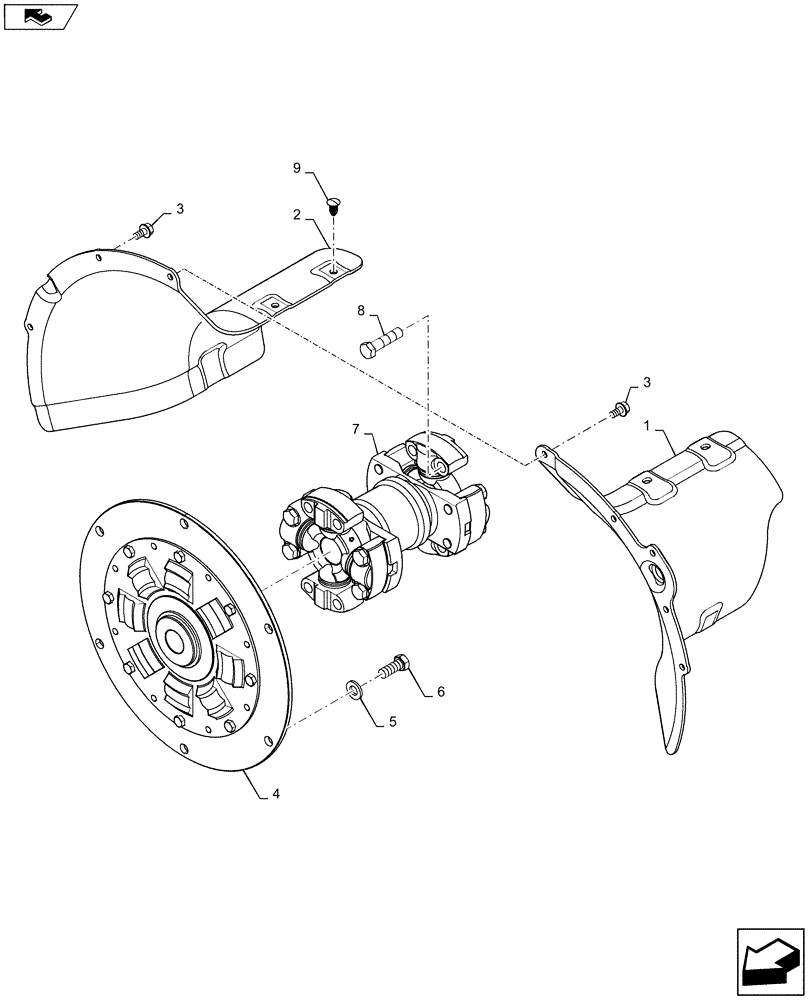

Запчасти Case IH MAGNUM 260 (10.110.AD[01]) - DAMPER, SHAFT & SHIELD, POWERSHIFT - 235, 260, 290 (10) - ENGINE

1

84226324

SHIELD

Driveshaft, LH

1шт.

2

84226325

SHIELD

Driveshaft, RH

1шт.

3

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

7шт.

4

248409A2

DRIVE PLATE

7C

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

6

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

7

87678404

SHAFT

Drive, 7C, Components NSS

1шт.

8

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

9

87529297

CLIP

Christmas Tree, 8.6mm Hole

2шт.
