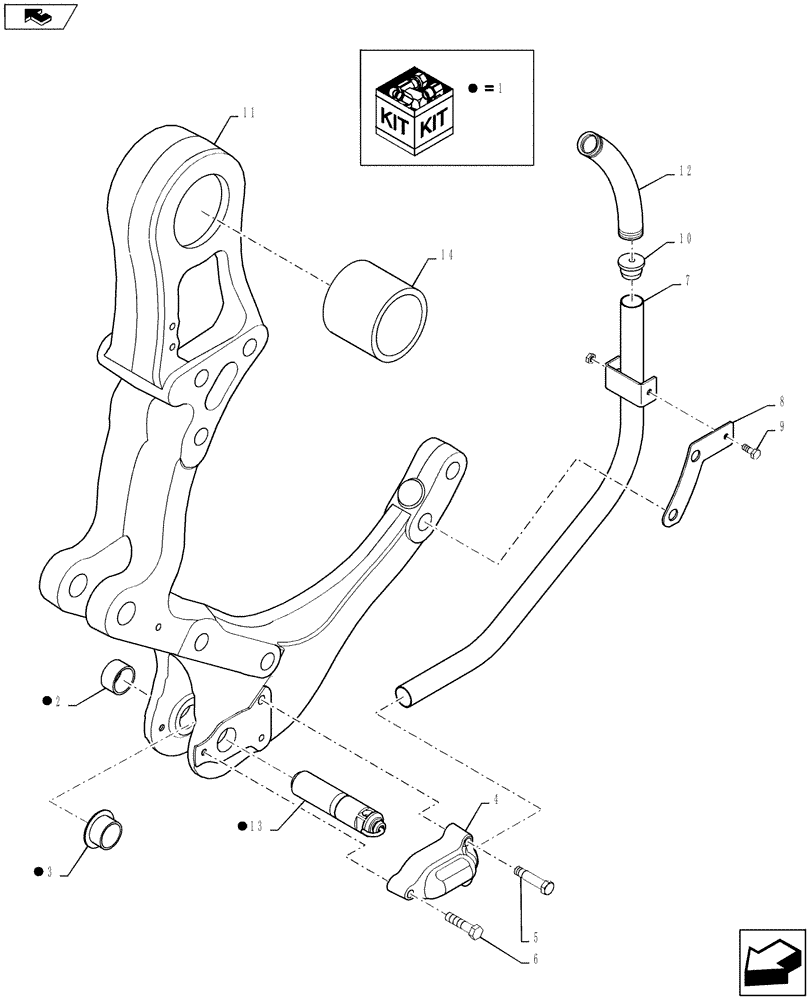

Запчасти Case IH MAGNUM 260 (37.120.AL[01]) - "C" BRACKET, DRAFT CONTROL - STANDARD REAR AXLE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

322022A1

KIT

Repair, If Equipped, Incl 2 - 3, 13

2шт.

2

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

2шт.

3

303550A1

BUSHING,37.15mm ID x 57.15mm OD x 26mm L

2шт.

4

87365144

COVER

2шт.

5

225643A1

BOLT,Shldr, Hex, M12 x 1.75 x 56mm

2шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

7

236897A2

TUBE

2шт.

8

229904A2

SUPPORT

2шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

10

1960765C2

GROMMET

2шт.

11

84365931

BRACKET

Assembly, Incl 2, 14

2шт.

12

326827A1

SLEEVE

2шт.

13

87351611

SENSOR

Pin, Draft Control

1шт.

14

222355A1

BUSHING,100.25mm ID x 106.11mm OD x 75mm L

1шт.
