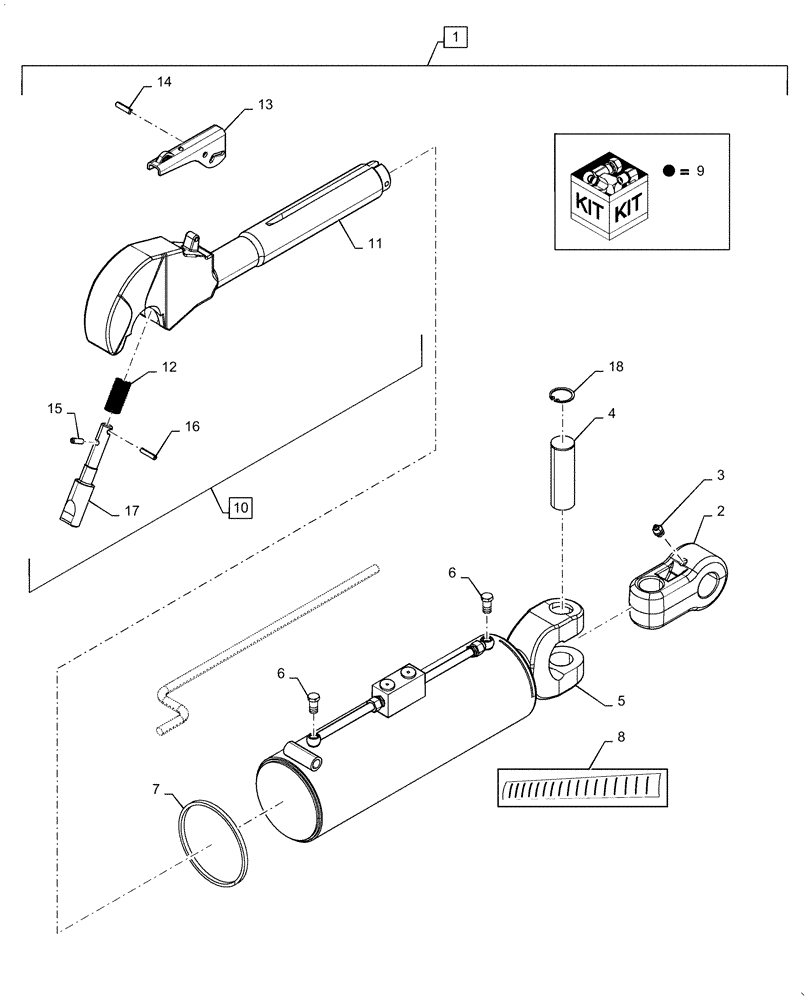

Запчасти Case IH MAGNUM 260 (37.120.AA[07]) - TOP LINK, HYDRAULIC, CLAW END, CAT 3 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84179060

LINK

Upper, Hydraulic, Claw End, Cat 3, Incl 2 - 18

1шт.

2

84418714

CLEVIS

Upper Link

1шт.

3

378716A1

LUBE NIPPLE,Hex, M10 x 1 x 17.5mm L

1шт.

4

310476A2

PIN

Rod Pivot

1шт.

5

87707446

LOCK VALVE

Load Check, Incl (2) Banjo Fittings

1шт.

6

47392862

SERVICE KIT

Incl (2) Banjo Bolts, (2) Seal Washers

1шт.

7

47392863

SNAP RING

Cylinder Head

1шт.

8

47392864

DECAL

Cylinder Position

1шт.

9

87707546

SEAL KIT

1шт.

10

47392941

ROD

Incl 11 - 17

1шт.

11

245302A1

END

1шт.

12

118705A1

SPRING

1шт.

13

118708A1

LEVER

Claw Latch

1шт.

14

838-5624

LOCK PIN,M6 x 24, Slotted

1шт.

15

838-5620

LOCK PIN,M6 x 20, Slotted

1шт.

16

838-5524

LOCK PIN,M5 x 24, Slotted

1шт.

17

82032557

PIN,15.5mm OD x 127.5mm L

1шт.

18

800-2128

SNAP RING,M28, Int

1шт.
