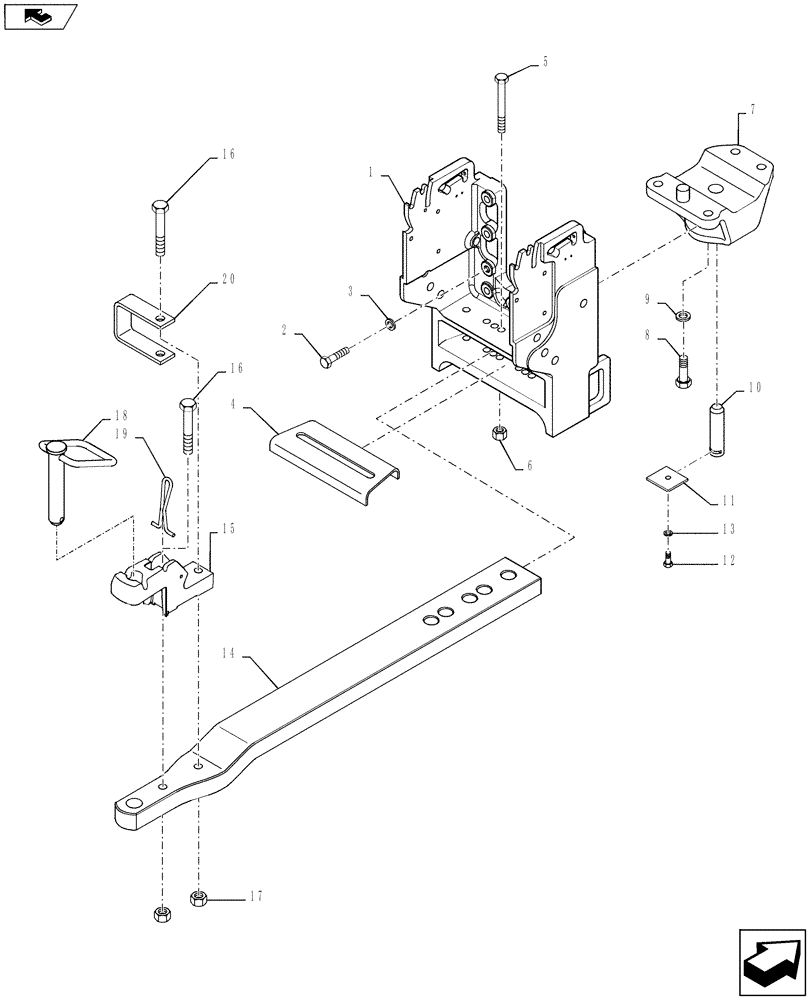

Запчасти Case IH MAGNUM 260 (37.100.AA[02]) - DRAWBAR & HAMMERSTRAP, HIGH CAPACITY, CAT III (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

251788A3

FRAME,Hitch

1шт.

2

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

10шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

4

238495A3

PLATE

1шт.

5

827-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

2шт.

6

832-10416

NUT,M16 x 2, Cl 8

2шт.

7

87489660

BRACKET

Accepts 127mm wide drawbar

1шт.

8

828-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9

4шт.

9

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

10

1982103C1

PIN,34.87mm OD x 140mm L

1шт.

11

87720346

RETAINER

1шт.

12

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

1шт.

13

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

14

87680426

SWINGING DRAWBAR,1451mm L x 127mm W x 50.8mm Thk, 35mm Offset

127mm Wide

1шт.

14

426511A1

SWINGING DRAWBAR

85mm Wide

1шт.

15

232615A3

STRAP,228.98mm L x 76.2mm W x 50.8mm Thk, 91.95mm Offset

Cat III

1шт.

16

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

2шт.

17

829-1420

NUT,M20, Cl 10

2шт.

18

232616A3

HITCH PIN,38.1mm OD x 226mm L

1шт.

19

232617A1

LATCH

1шт.

20

449666A1

SUPPORT ASSY.

1шт.
