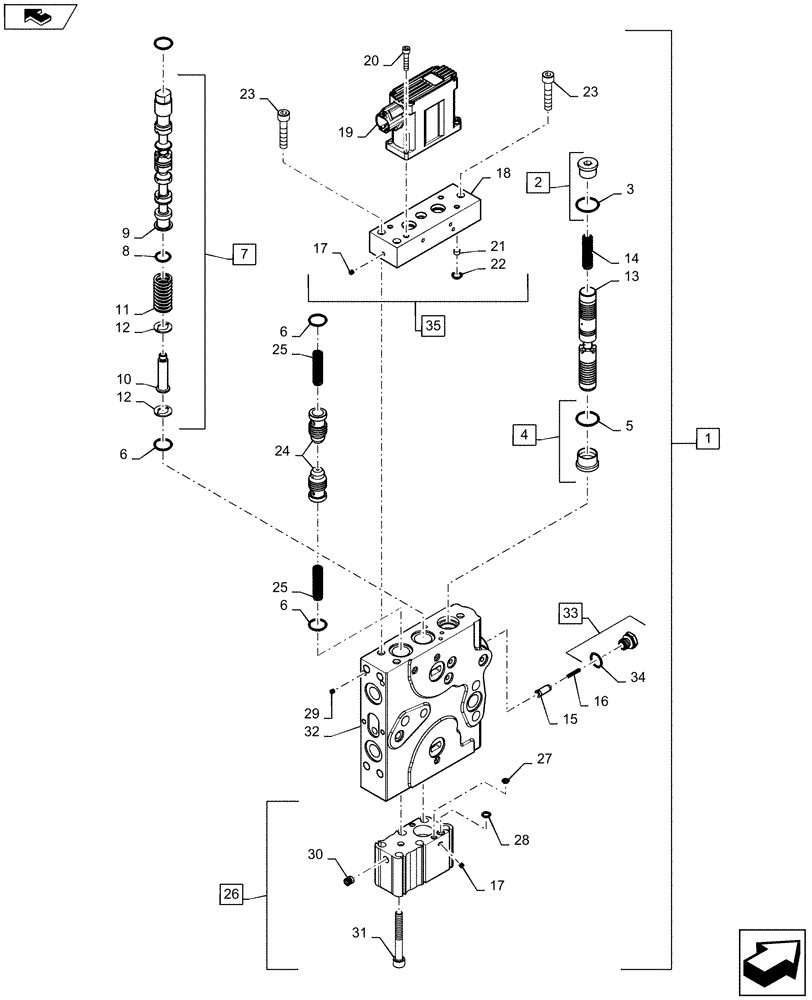

Запчасти Case IH MAGNUM 260 (35.204.BE[04]) - REMOTE CONTROL VALVE, BSN ZDRD02583 (35) - HYDRAULIC SYSTEMS

1

87496186

HYD VALVE SECTION

ASSY, Main, Incl 2 - 35

1шт.

1

47434186R

REMAN-HYD VALVE

Reman For New PN 87496186

1шт.

1

47434186C

CORE-VALVE HYD

Return Number

1шт.

1

87496189

VALVE SECTION,Assembly, Aux Valve

ASSY, Right, Incl 2 - 35

1шт.

1

47434188R

REMAN-HYD VALVE

Reman For New PN 87496189

1шт.

1

47434188C

CORE-VALVE HYD

Return Number

1шт.

1

87496191

HYD VALVE SECTION

ASSY, Left, Incl 2 - 35

1шт.

87496191R

REMAN-HYD VALVE

MAGNUM 235, 260, 290, 315, 340, ALL TIER 4A

1шт.

87496191C

CORE-VALVE HYD

Return Number

1шт.

1

47434187R

REMAN-HYD VALVE

Reman For New PN 8746191

1шт.

1

47434187C

CORE-VALVE HYD

Return Number

1шт.

2

218-5210

PLUG,Hex, 3/4"-16 ORB

Incl 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87635387

O-RING,2.62mm Thk x 21.89mm ID, -118, 80 Duro

4шт.

7

84317306

SPOOL

ASSEMBLY, Incl 8 - 12

1шт.

8

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL, Main EH Pilot; Incl in 7

1шт.

10

87437101

EXPANSION PLUG,Hex, 6.31mm ID x 15.5mm OD x 48.5mm L

1шт.

11

87437166

VALVE SPRING

Aux Centering Outer

1шт.

12

87437168

WASHER,11.75mm ID x 21mm OD x 1.5mm Thk

Centering

2шт.

13

84297867

SPOOL

1шт.

14

436854A1

SPRING,15.11mm OD x 63.35mm L

1шт.

15

87648631

PIN,8mm OD x 19mm L

Load Sense

1шт.

16

87648596

SPRING,3.81mm OD x 23.19mm L

Aux Signal Check

1шт.

17

282836A1

PLUG,4mm OD x 4mm L

Expansion 4mm

10шт.

18

NSS

NOT SOLD SEPARAT

BLOCK, Assembly Solenoid Adapter Plate; Incl in 35

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE, Assembly Pilot Head w/Offset; Incl in 35

1шт.

20

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

21

87714123

FILTER

Filtration, 100-150 Micron

1шт.

22

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

23

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

3шт.

24

84317307

POPPET

Main Lock Check

2шт.

25

87437167

VALVE SPRING,8.08mm ID x 10.92mm OD x 53.27mm L

2шт.

26

87329482

VALVE BODY

Incl 17, 27, 28, 30, 31

1шт.

27

87635377

O-RING,1.78mm Thk x 2.9mm ID, -6, 80 Duro

2шт.

28

87635378

O-RING,1.78mm Thk x 5.28mm ID, -9, 80 Duro

1шт.

29

84579020

PLUG,1.81" - 2.75"

Expansion, 4mm

2шт.

30

282839A1

PLUG,8mm OD x 8.5mm L

Expansion

1шт.

31

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

6шт.

32

NSS

NOT SOLD SEPARAT

BODY; Incl in 1

1шт.

33

87648607

PLUG,M12 x 1.5 ORB

Load Sense, Incl 34

1шт.

34

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

35

84478195

SOLENOID,Assembly, Pilot Head

Valve Assembly, Incl 17 - 22

1шт.
