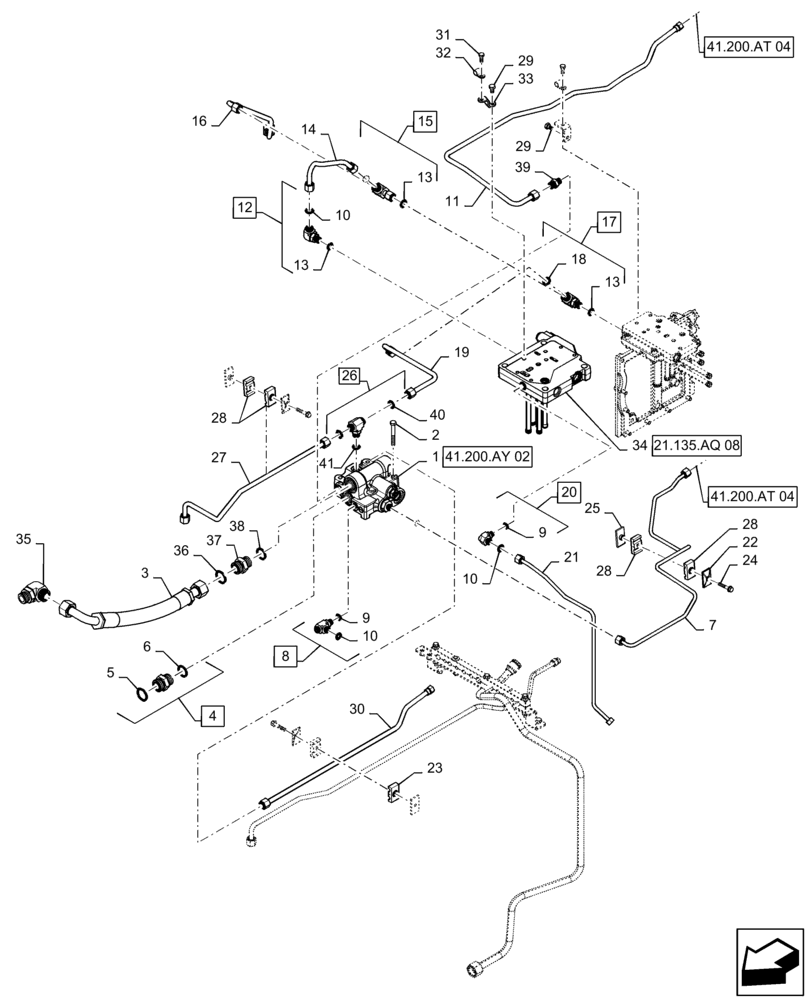

Запчасти Case IH MAGNUM 260 (35.000.AA[07]) - POWERSHIFT - REGULATING SYSTEM - 315, 340 (35) - HYDRAULIC SYSTEMS

1

84340310

VALVE SECTION

PWM PRI/REG

1шт.

2

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

3шт.

3

87413846

HYDRAULIC HOSE,25.4mm ID x 463mm L, SAE 100R12

Aux Valve Supply

1шт.

4

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 5, 6

2шт.

5

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

6

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

7

87367650

HYD TUBE,.375" OD

1шт.

8

700-441

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 9, 10

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

3шт.

11

433591A1

TUBE

Steering Supply

1шт.

12

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 10, 13

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

14

308172A1

TUBE,0.5" OD, 158, 37 mm Length

Range Regulated Supply

1шт.

15

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 13

1шт.

16

87560257

TUBE,0.5" OD

1шт.

17

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 13, 18

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

19

433589A1

TUBE

Trans Regulated Supply

1шт.

20

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 9, 10

1шт.

21

84359041

TUBE

Master Clutch Diagnostic

1шт.

22

384870A1

PLATE

Tube Clamp

2шт.

23

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

Tube

1шт.

24

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

2шт.

25

384871A1

PLATE

Tube Clamp

3шт.

26

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 40, 41

1шт.

27

84187771

TUBE

PTO/Diff Lock Valve Supply

1шт.

28

1546024C1

CLAMP

Twin 3-8 Tube

1шт.

29

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

30

433588A1

TUBE

Brake Supply

1шт.

31

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

32

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

33

86988840

BRACKET

Steering Supply Tube Clamp, Rear

1шт.

34

445537A2

VALVE

Inching Shuttle

1шт.

35

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

1шт.

36

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

37

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

1шт.

38

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

39

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

40

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

41

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.
