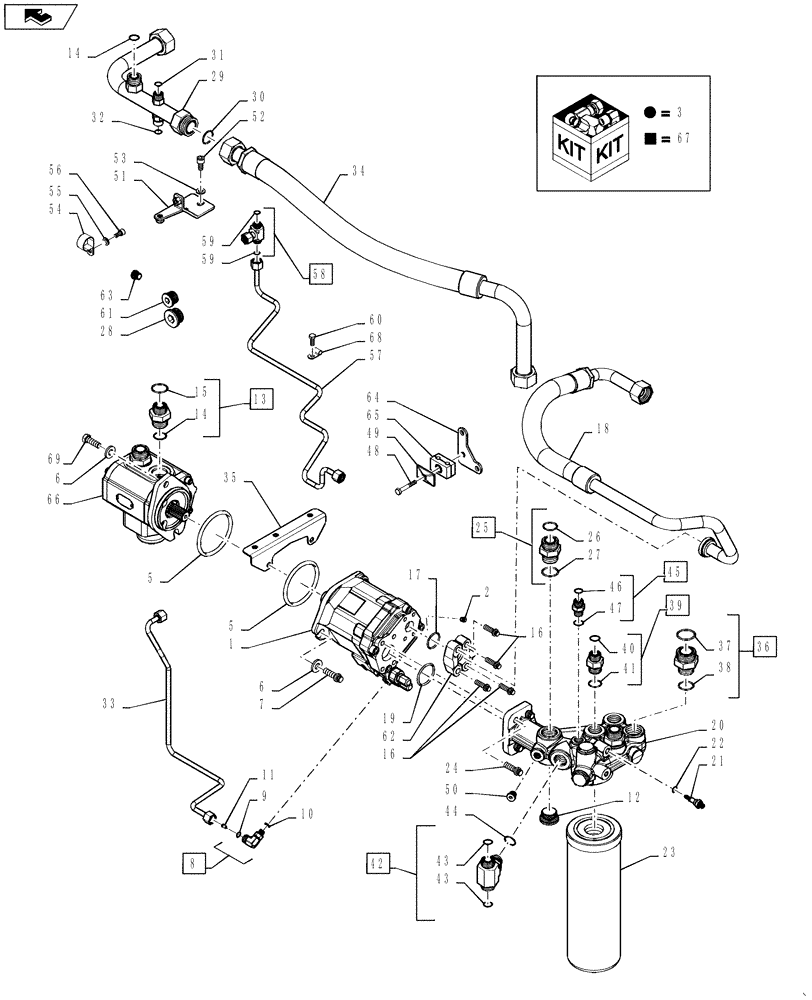

Запчасти Case IH MAGNUM 260 (35.000.AA[01]) - POWERSHIFT - HYDRAULIC SYSTEM, PISTON PUMP & FILTER, STANDARD & HIGH FLOW CAPACITY (35) - HYDRAULIC SYSTEMS

1

87538174

PUMP,156 LPM (41.3 GPM)

63 cc, Standard

1шт.

87538174R

REMAN-HYD PUMP

MAGNUM 235, MAGNUM 260, MAGNUM 290, MAGNUM 315, MAGNUM 340 all TIER 4A

1шт.

87538174C

CORE-HYDRAULIC PUMP

RETURN NUMBER

1шт.

1

87538168

PUMP,211 LPM (55.6 GPM)

85 cc, High Flow

1шт.

87538168R

REMAN-HYD PUMP

MAGNUM 235, MAGNUM 260, MAGNUM 290, MAGNUM 315, MAGNUM 340 All TIER 4A

1шт.

87538168C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

218-5157

PLUG,Hex Hd, 7/8"-14 ORB

1шт.

3

87489367

SERVICE KIT

Compensator

1шт.

4

87553152

GASKET

Control Valve (Not Shown)

1шт.

5

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

2шт.

6

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

7

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

2шт.

8

451226A1

90 ELBOW

Incl 9, 10

1шт.

8

86994121

TEE

7/16 ORB x 11/16 ORF; Incl 9, 10

1шт.

USE TEE INSTEAD OF ELBOW IF UNIT HAS SUSPENDED FRONT AXLE

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

11

133519C1

SCREEN

1шт.

12

221527A1

PLUG,Hex Soc, M33 x 2, ORB

1шт.

13

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 14, 15

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

16

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

4шт.

17

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

18

87438800

HOSE

PFC Pump Outlet, Standard Flow

1шт.

18

87438801

HOSE

PFC Pump Outlet, High Flow

1шт.

19

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Standard Flow

1шт.

19

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

High Flow

1шт.

20

84355445

HEAD

Filter, Standard Flow

1шт.

20

84355443

HEAD

Filter, High Flow

1шт.

21

1957801C1

PRESSURE SWITCH

Incl 22

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

84487937

HYDRAULIC OIL FILTER,Spin On, 14.48" OAL

Charge/Lube

1шт.

24

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

1шт.

25

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 26, 27

3шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

28

221527A1

PLUG,Hex Soc, M33 x 2, ORB

1шт.

29

84274474

HYD TUBE

Auxillary Manifold Return

1шт.

30

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

33

451209A1

HYD TUBE

Pump Load Sense, Serial Range: -ZCRC08726

1шт.

33

47413295

HOSE,9.53mm ID x 615mm L, SAE 100R17

, Start Serial: ZCRC08726

1шт.

34

87385538

HOSE

Auxillary Manifold Return

1шт.

35

451054A1

BRACKET

1шт.

36

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 37, 38

1шт.

37

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

38

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

39

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 40, 41

1шт.

40

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

41

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

42

86579712

TEE,M27 x 2 x 55.5mm

Incl 43, 44

1шт.

43

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

44

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

45

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 46, 47

1шт.

46

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

47

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

48

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

, Serial Range: -ZCRC08726

1шт.

48

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

, Start Serial: ZCRC08726

1шт.

49

384870A1

PLATE

, Serial Range: -ZCRC08726

1шт.

49

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

, Start Serial: ZCRC08726

1шт.

50

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

51

84356692

BRACKET

1шт.

52

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

1шт.

53

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

54

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

55

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

56

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

57

84414935

HYD TUBE

Auxillary Manifold Load Sense

1шт.

58

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 59

1шт.

59

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

60

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

61

221580A1

PLUG,M27 x 2 ORB

1шт.

62

86980728

COLLAR CLAMP

1шт.

63

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

64

451211A1

PLATE

, Serial Range: -ZCRC08726

1шт.

64

86988840

BRACKET

, Start Serial: ZCRC08726

1шт.

65

1546024C1

CLAMP

, Serial Range: -ZCRC08726

1шт.

65

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

, Start Serial: ZCRC08726

1шт.

66

84347565

PUMP,37.4 CC

Charge Lube, STD High Flow

1шт.

67

87407008

SERVICE KIT

Charge Pump

1шт.

68

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

69

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.
