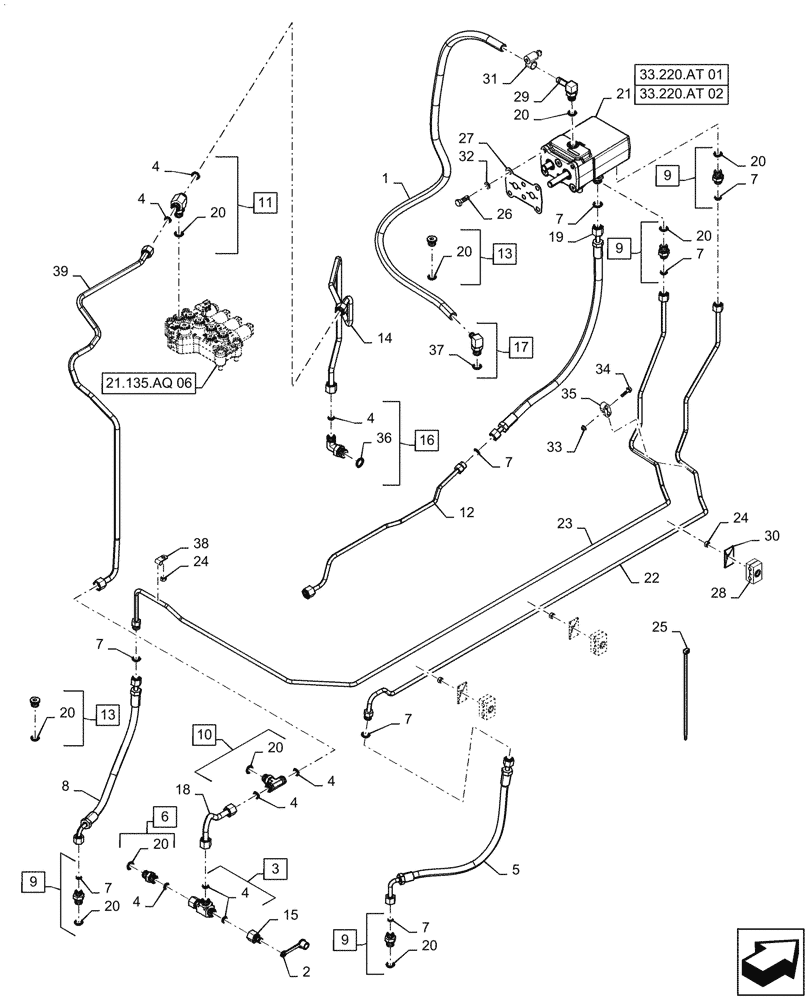

Запчасти Case IH MAGNUM 260 (33.202.AP[01]) - BRAKE LINES, POWERSHIFT WITHOUT TRAILER BRAKE (33) - BRAKES & CONTROLS

1

84416594

HOSE

Brake Valve Drain

1шт.

2

143349A1

DUST CAP

1шт.

3

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 4

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

5

87625539

HYDRAULIC HOSE

RH Brake

1шт.

6

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 4, 20

1шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

8

84160886

HYDRAULIC HOSE,9.53mm ID x 675mm L

LH Brake

1шт.

9

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 7, 20

4шт.

10

87312674

VALVE PRESSURE RELIE

Park Brake; Incl 4, 20

1шт.

11

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 4, 20

1шт.

12

433588A1

TUBE

Brake Supply

1шт.

13

221578A1

PLUG,M18 x 1.5 ORB

Incl 20

2шт.

W/O Trailer Brake

1шт.

14

448220A1

TUBE

LH Park Brake

1шт.

15

322529A1

COUPLING

Diagnostic

1шт.

16

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 4, 36

1шт.

17

87331123

FITTING

Incl 37

1шт.

18

84378859

TUBE

Park Brake Lowe Supply

1шт.

19

87731873

HOSE,9.53mm ID x 704mm L

Brake Valve Supply

1шт.

20

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

10шт.

21

84512003

BRAKE VALVE

1шт.

22

47766082

BRAKE LINE

RH Brake Workport, Incl 7

1шт.

W/O Trailer Brake

1шт.

23

47766081

BRAKE LINE

LH Brake Workport, Incl 7

1шт.

W/O Trailer Brake

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

25

86991007

CABLE TIE,509mm L

1шт.

26

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

27

407142A1

GASKET

Brake Valve

1шт.

28

1546024C1

CLAMP

3шт.

29

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

1шт.

30

384870A1

PLATE

3шт.

31

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

32

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

33

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

34

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

35

47836534

PIPE CLAMP

1шт.

36

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

37

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

38

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

39

84378861

TUBE

RH Park Brake

1шт.
