Запчасти Case IH MAGNUM 260 (33.110.AX[04]) - CLUTCH PACK, EMERGENCY BRAKE, NA - POWERSHIFT ASN ZDRD04268 (33) - BRAKES & CONTROLS

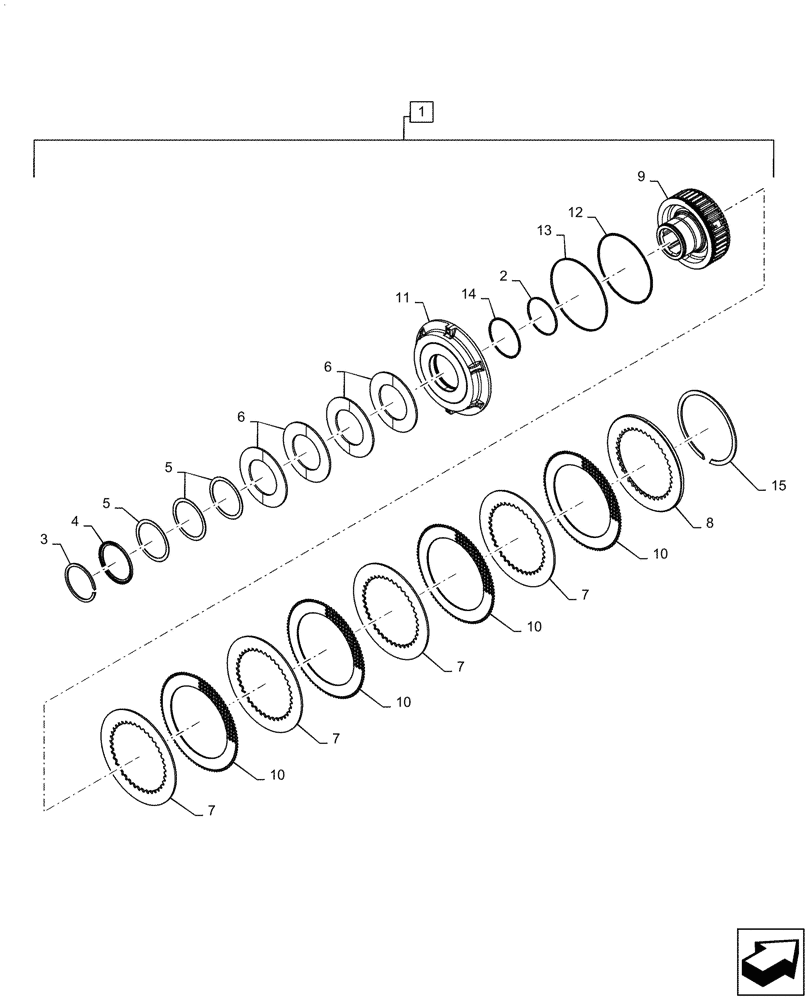

Схема запчастей Case IH MAGNUM 260 - (33.110.AX[04]) - CLUTCH PACK, EMERGENCY BRAKE, NA - POWERSHIFT ASN ZDRD04268 (33) - BRAKES & CONTROLS
6
13
10
4
2
3
7
6
11
7
14
8
1
10
7
5
15
7
10
9
10
12
5

Артикул

Название

Примечание

Количество

1

84471477

CLUTCH

Park Brake, NA or Tier 2, Incl 2 - 15

1шт.

2

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

Park Brake, Small

1шт.

3

87434027

CIRCLIP

Retaining, External

1шт.

4

84530165

SNAP RING

Retaining

1шт.

5

87329116

SHIM,84.5mm ID x 100mm OD x 1.52mm Thk

1шт.

5

47572512

SHIM,84.5mm ID x 100mm OD x 1.27mm Thk

1шт.

5

87639547

SHIM,84.5mm ID x 100mm OD x 1mm Thk

1шт.

6

87305967

BELLEVILLE SPRING

Park Brake

4шт.

7

87449793

SEPARATOR

Plate

4шт.

8

87347805

BACKING PLATE

39T

1шт.

9

84533072

HUB

Park Brake

1шт.

10

84159176

CLUTCH PLATE

Friction

4шт.

11

87374796

PISTON

Park Brake

1шт.

12

14462281

O-RING,6.237" ID x 0.103" Width

1шт.

13

87374799

SEAL,167.1mm ID x 170.5mm OD x 2.87mm Thk

Park Brake, Large

1шт.

14

87304282

O-RING,0.103" Thk x 3.487" ID, -153, Cl 7, 75 Duro

1шт.

15

87347811

CIRCLIP

Retaining, External

1шт.

Выбрано товаров: 17
