Запчасти Case IH MAGNUM 260 (33.110.AT[01]) - POWERSHIFT - PNEUMATIC TRAILER BRAKE HAND CONTROL VALVE (33) - BRAKES & CONTROLS

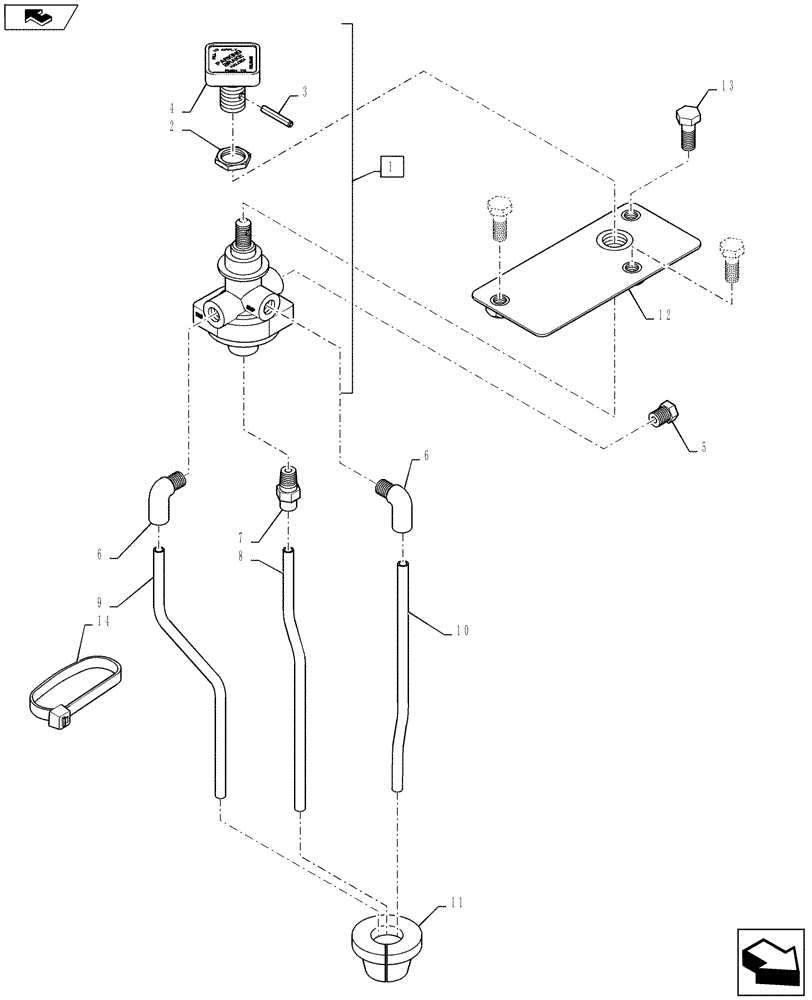

Схема запчастей Case IH MAGNUM 260 - (33.110.AT[01]) - POWERSHIFT - PNEUMATIC TRAILER BRAKE HAND CONTROL VALVE (33) - BRAKES & CONTROLS
11
7
2
8
5
12
1
9
home
13
14
3
6
6
4
10

Артикул

Название

Примечание

Количество

1

87409382

PNEUMATIC VALVE

Hand; Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

NUT, Locking

1шт.

3

NSS

NOT SOLD SEPARAT

PIN, Roll

1шт.

4

NSS

NOT SOLD SEPARAT

HANDLE

1шт.

5

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

6

87411410

ELBOW

Male Non-Swivel 90°

2шт.

7

87411411

HYD CONNECTOR

Air Brake Push-In 1/4 x 1/8-27NPT

1шт.

8

84211988

HOSE,6.35mm ID x 355mm L

Hand Valve Exhaust

1шт.

9

84211990

TUBE

Hand Valve to Protection Valve

1шт.

10

84211989

TUBE

Hand Valve Supply

1шт.

11

182045A1

GROMMET

.57mm OD x .391mm ID

1шт.

12

87411915

MOUNTING PLATE

Hand Valve

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

Выбрано товаров: 14
