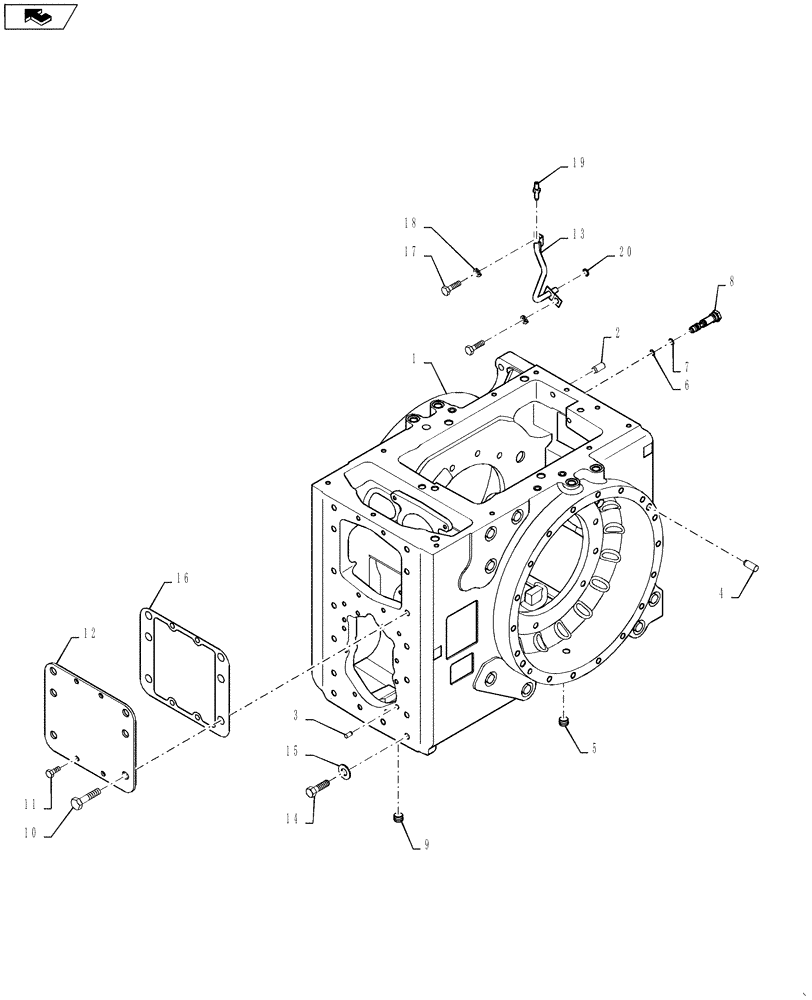

Запчасти Case IH MAGNUM 260 (27.100.AB[01]) - REAR AXLE, HOUSING (27) - REAR AXLE SYSTEM

1

87713053

HOUSING ASSY.

Rear Axle, Powershift; Incl 2 - 12

1шт.

2

837-16035

DOWEL,M16 x 35

1шт.

3

837-10020

DOWEL,M10 x 20

2шт.

4

837-16040

DOWEL,M16 x 40

4шт.

5

192791A1

PLUG

Drain

2шт.

6

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

7

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

8

411075A1

FITTING

Diff Lock Pressure

1шт.

9

192792A1

PLUG

Drain

1шт.

10

628-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd

6шт.

11

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

12

236602A1

COVER

Rear Frame, Upper, For Tractors Without Three Point Hitch

1шт.

13

409741A1

TUBE

Bevel Gear Lube

1шт.

14

87698770

LOCK BOLT,M16 x 2 x 80mm, Cl 10.9

Chem Lock, M16 x 80 10.9 PHC

10шт.

15

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

16

379145A2

GASKET,0.79mm Thk

Upper Link Cover

1шт.

17

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

18

892-11012

LOCK WASHER,M12

2шт.

19

414320A1

FITTING

Bevel Gear Lube

1шт.

20

239-5112

O-RING,Rect, .5" ID x .688" OD, Cl 5

1шт.
