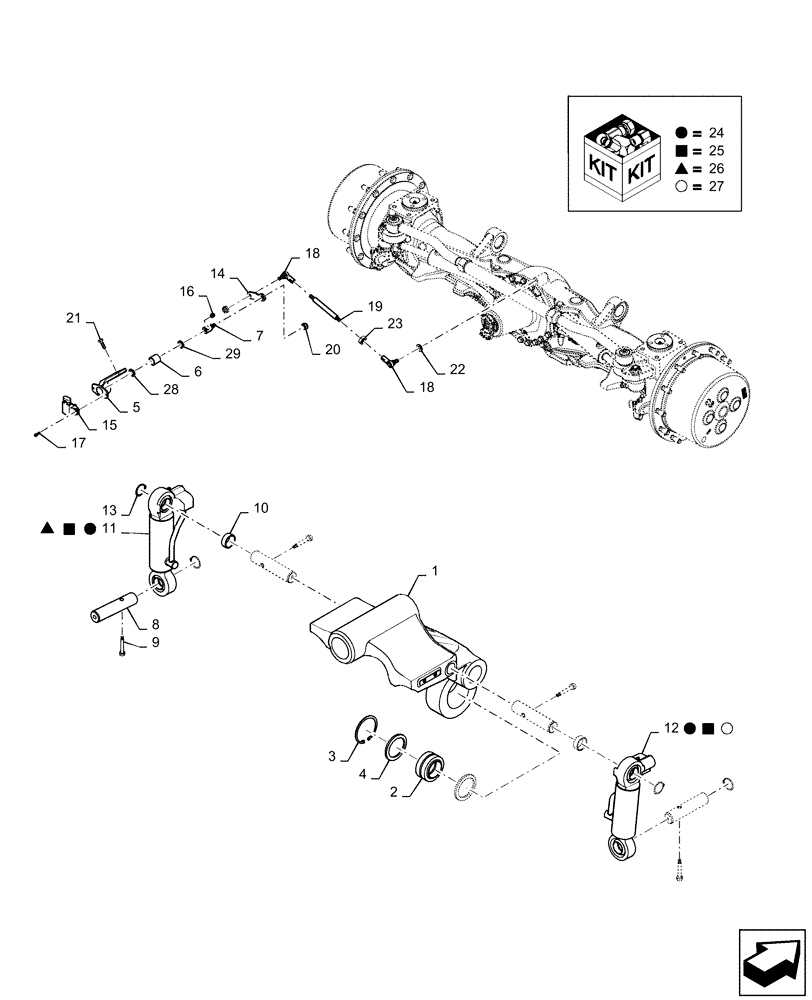

Запчасти Case IH MAGNUM 260 (25.100.BB[02]) - VAR - 420228 DANA FRONT AXLE SUSPENSION, CLASS 4.75 (25) - FRONT AXLE SYSTEM

1

87406430

CRADLE

MFD Axle Suspension

1шт.

2

87406434

SPHERICAL BEARING

1шт.

3

87406477

SNAP RING

1шт.

4

87406445

WIPER SEAL

2шт.

5

87431268

BRACKET

Sensor, Incl 6

1шт.

6

87431265

BUSHING

Nylon

1шт.

7

87431267

SHAFT

1шт.

8

87406468

PIN

4шт.

9

87406494

BOLT

4шт.

10

87406485

SPACER

2шт.

11

87406483

CYLINDER

Left Hand, See Ref 24 - 27

1шт.

12

87406484

CYLINDER

Right Hand, See Ref 24 - 27

1шт.

13

87406497

SNAP RING

4шт.

14

87406470

CONNECTING LINK

1шт.

15

87406433

SENSOR

Angle, Suspension Axle; Axle Position

1шт.

16

87406492

SET SCREW

1шт.

17

87406498

SCREW,Skt Hd, M4 x 10mm

2шт.

18

87406490

BALL JOINT

2шт.

19

87406488

SHAFT

1шт.

20

87406499

NUT

2шт.

21

87406503

SCREW,Hex

2шт.

22

87406495

WASHER

1шт.

23

87406500

NUT

1шт.

24

87436717

SPHERICAL BEARING

Bearing Set; Incl 2 Spherical Bearings, 2 Snap Rings, and 2 Grease Nipples

1шт.

Used on Cylinders 87406483 and 87406484

1шт.

25

87436718

SERVICE KIT

Cylinder Seal

1шт.

Used on Cylinders 87406483 and 87406484

1шт.

26

87436719

SERVICE KIT

Barrel Assembly, Left Hand

1шт.

Used on Cylinder 87406483

1шт.

27

87436720

SERVICE KIT

Barrel Assembly, Right Hand

1шт.

Used on Cylinder 87406484

1шт.

28

87431272

O-RING

1шт.

29

87405002

O-RING

1шт.
