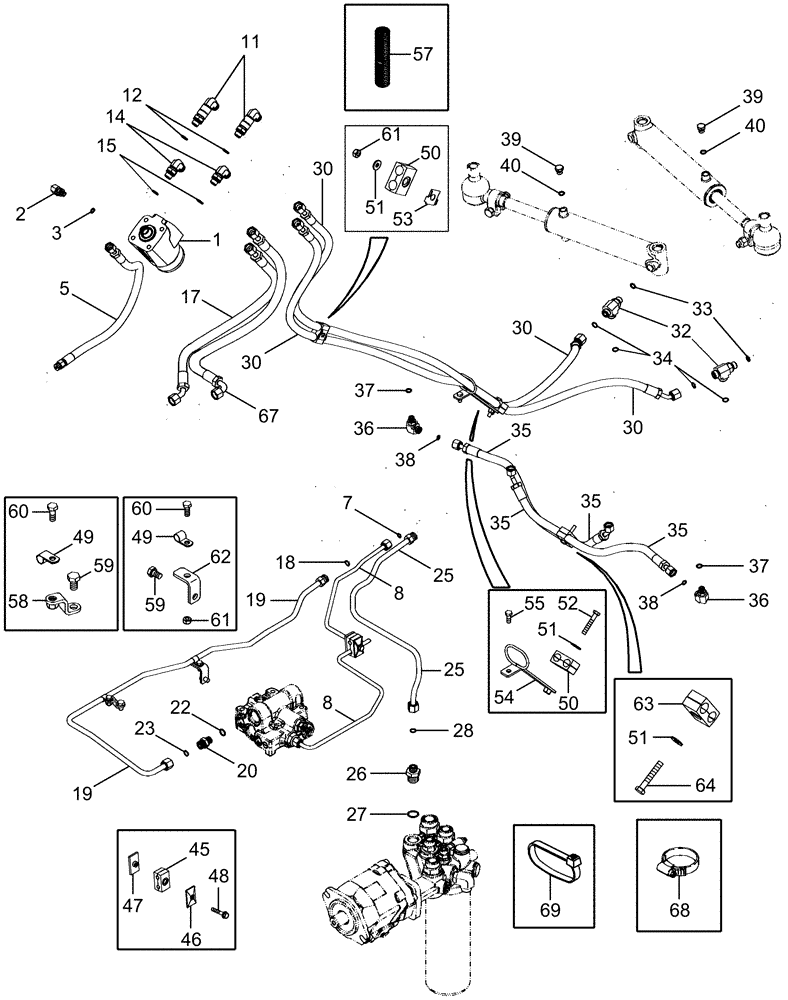

Запчасти Case IH MAGNUM 255 (05-03) - STEERING SYSTEM - MFD (05) - STEERING

1

445303A2

PUMP

Steering

1шт.

With 10 Bolt Hub

1шт.

1

445304A2

PUMP

Steering

1шт.

With 12 Bolt Hub

1шт.

1

445304A2R

REMAN-STEERING VALVE

Reman For New P/N 445304A2, Steering, With 12 Bolt Hub

1шт.

1

445304A2C

CORE-STEERING VALVE

Return Part Number

1шт.

1

87315007

PUMP

Steering, Accuguide

1шт.

With 10 Bolt Hub

1шт.

2

87401122

ELBOW

11/16 fc sl x 12 Or, Inc. 3

1шт.

3

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

1

87315009

PUMP

Steering, Accuguide

1шт.

With 12 Bolt Hub

1шт.

5

87363334

HOSE,9.5mm ID x 825mm L

Steering Load Sense

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

87367650

HYD TUBE,.375" OD

1шт.

11

87401124

90 ELBOW

13/16 fc sl x 18 Or, Inc. 12

2шт.

12

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

87401123

ELBOW

13/16 fc sl x 18 Or, Inc. 15

2шт.

15

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

17

87352870

HOSE,12.7mm ID x 700mm L

Supply

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

433591A1

TUBE

Supply

1шт.

20

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 22, 23

1шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

87449707

TUBE,0.5" OD

Return

1шт.

26

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl. 27, 28

1шт.

27

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

87401118

HOSE,9.5mm ID x 1950mm L

Steering Cylinder Supply

2шт.

32

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 33, 34

2шт.

33

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

35

249817A2

HOSE,9.52mm ID x 778mm L

Steering Cylinder

2шт.

36

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 37, 38

2шт.

37

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

39

220064A1

PLUG,M14 x 1.5, ORB

2шт.

40

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

45

1546024C1

CLAMP

2 piece

1шт.

47

384871A1

PLATE

M8; 10

1шт.

46

384870A1

PLATE

9 x 20 x 1,6 mm

1шт.

48

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

50

387161A1

CLAMP

2шт.

49

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

51

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

52

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

53

448560A1

RETAINING PLATE

1шт.

54

403534A1

BRACKET

1шт.

55

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

56

87443446

CONDUIT

3шт.

57

87337468

CONDUIT

2шт.

57

408412A1

CONDUIT

5шт.

58

86988840

BRACKET

1шт.

59

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

60

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

61

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

62

86988838

BRACKET

1шт.

63

118576A1

CLAMP

1шт.

64

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

65

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

(Not Shown)

1шт.

66

87454545

SEAL KIT

Steering Pump, (Not Shown)

1шт.

67

87363326

HOSE,12.7mm ID x 700mm L

Return

1шт.

68

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

69

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.
