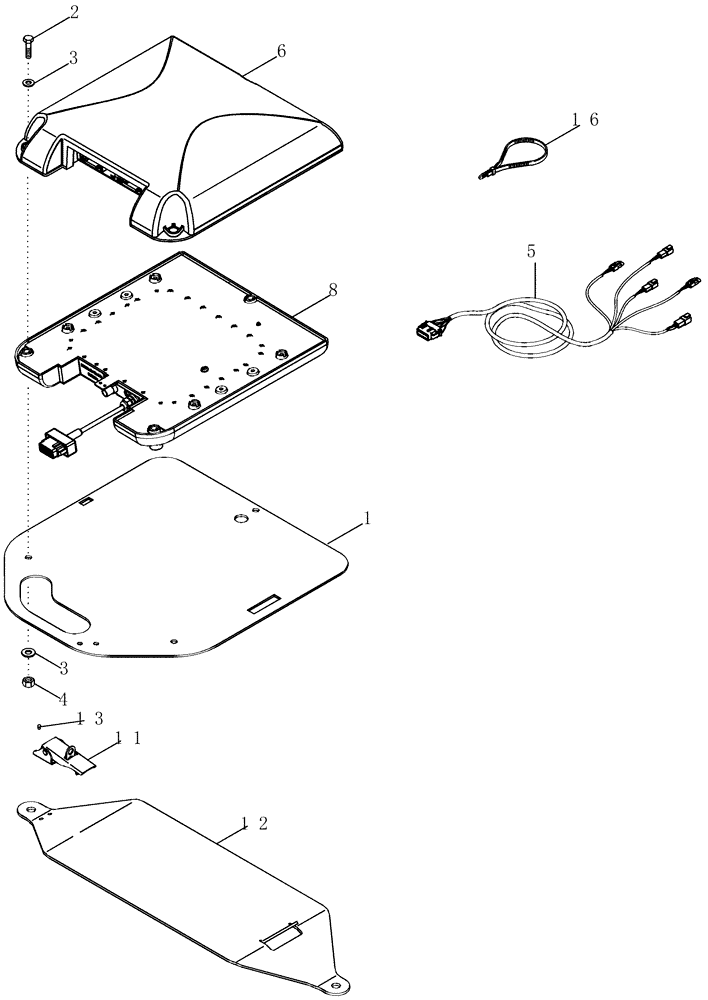

Запчасти Case IH MAGNUM 255 (04-42) - ACCUGUIDE RADIO AND ANTENNA (04) - ELECTRICAL SYSTEMS

1

87392607

MOUNTING PLATE

Antenna

1шт.

2

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

4

825-5146

SERRATED NUT,M6, Flg Ser

3шт.

5

87337451

HARNESS

Antenna

1шт.

6

87367705

MODULE

Receiver, DGPS

1шт.

6

84574273R

REMAN ELECT CONTROL

MAGNUM 255 TRACTOR (EMERGING MARKET), Receiver, DGPS (1/06-), Reman for New 87367705

1шт.

6

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

87367731

MODULE

Receiver, RTK

1шт.

6

84574273R

REMAN ELECT CONTROL

MAGNUM 255 TRACTOR (EMERGING MARKET), Receiver, RTK (1/06-), Reman for New 87367731

1шт.

6

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

87598732

PACKAGE, REPAIR

Receiver, VBS

1шт.

6

84574271R

REMAN ELECT CONTROL

MAGNUM 255 TRACTOR (EMERGING MARKET), Receiver, VBS (1/06-), Reman for New PN 87598732

1шт.

6

84574271C

CORE-ELECTRONIC CONT

Return Number

1шт.

7

892-11006

LOCK WASHER,M6

Not Shown

3шт.

8

87308224

MODULE

Ag RTK Radio (JOEY)

1шт.

10

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

(Not Shown)

3шт.

11

87308870

LATCH

1шт.

12

87308099

BRACKET

1шт.

13

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

2шт.

15

87428357

SET

(Not Shown)

1шт.

16

86991009

CABLE TIE,222mm L, Nylon

CABLE STRAP

2шт.
