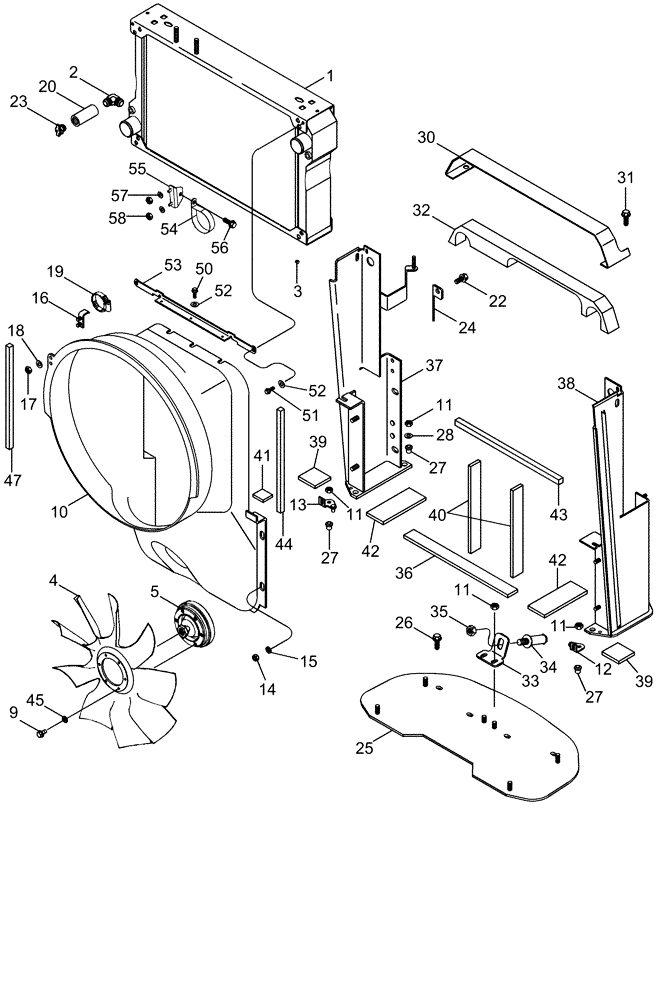

Запчасти Case IH MAGNUM 255 (02-01) - RADIATOR AND FAN SHROUD (02) - ENGINE

1

REF

INSTRUCTION

Radiator Assy

1шт.

See Figure 02-02

1шт.

2

217-1225

ELBOW,90 Degree, 1/4"-18 Male

1шт.

3

217-405

PLUG,Hex Hd, 1/4" - 18 NPT

1шт.

4

87445032

FAN

8 Blade, 127 mm ID, Standard Performance

1шт.

5

87446414

DRIVE

Viscous, Standard Performance

1шт.

9

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

10

84179753

SHROUD

Fan

1шт.

11

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

6шт.

12

87443609

BRACKET

Right Hand

1шт.

13

87443611

BRACKET

Left Hand

1шт.

14

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

4шт.

15

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

16

87438422

BRACKET

Shroud To Tube, Standard Performance

1шт.

17

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

214-3248

HOSE CLAMP,57mm - 79mm

1шт.

20

87350039

TUBE,19.10 mm OD x 60 mm L

1шт.

22

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

23

217-103

COCK, DRAIN

1/4 PT

1шт.

24

87313142

SUPPORT

Oil Cooler Hinge

1шт.

25

87367856

SUPPORT

Cooling System

1шт.

26

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

4шт.

27

434177A1

ISOLATOR

4шт.

28

495-81148

WASHER,7/16" x 1 1/4" x .134"

2шт.

30

87340498

BRACKET

1шт.

31

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

5шт.

32

87456357

INSULATOR

Air Duct

1шт.

33

87312069

STRIKER PLATE

Hood Latch

1шт.

34

301081A1

BOLT

Hood Latch

1шт.

35

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

1шт.

36

87356125

SEAL

Bottom Plate

1шт.

37

87621948

SUPPORT

Left Hand

1шт.

38

87621960

SUPPORT

Right Hand

1шт.

39

87456329

SEAL

Side Posts

2шт.

40

87356358

SEAL

Charge Air Cooler Side

2шт.

41

87438831

SEAL

Shroud

2шт.

42

87356126

SEAL

Side Posts

2шт.

43

87356124

SEAL

Radiator, Charge Air Cooler

1шт.

44

87356123

SEAL

Radiator To Shroud (Front)

2шт.

45

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

6шт.

46

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

47

87390684

SEAL

Radiator To shroud (Rear)

2шт.

50

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

51

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

52

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

5шт.

53

87454889

BRACKET

1шт.

54

84201540

CLAMP,69.8mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

55

84175864

BRACKET

With Coolant Line Support

1шт.

56

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

57

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

58

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.
