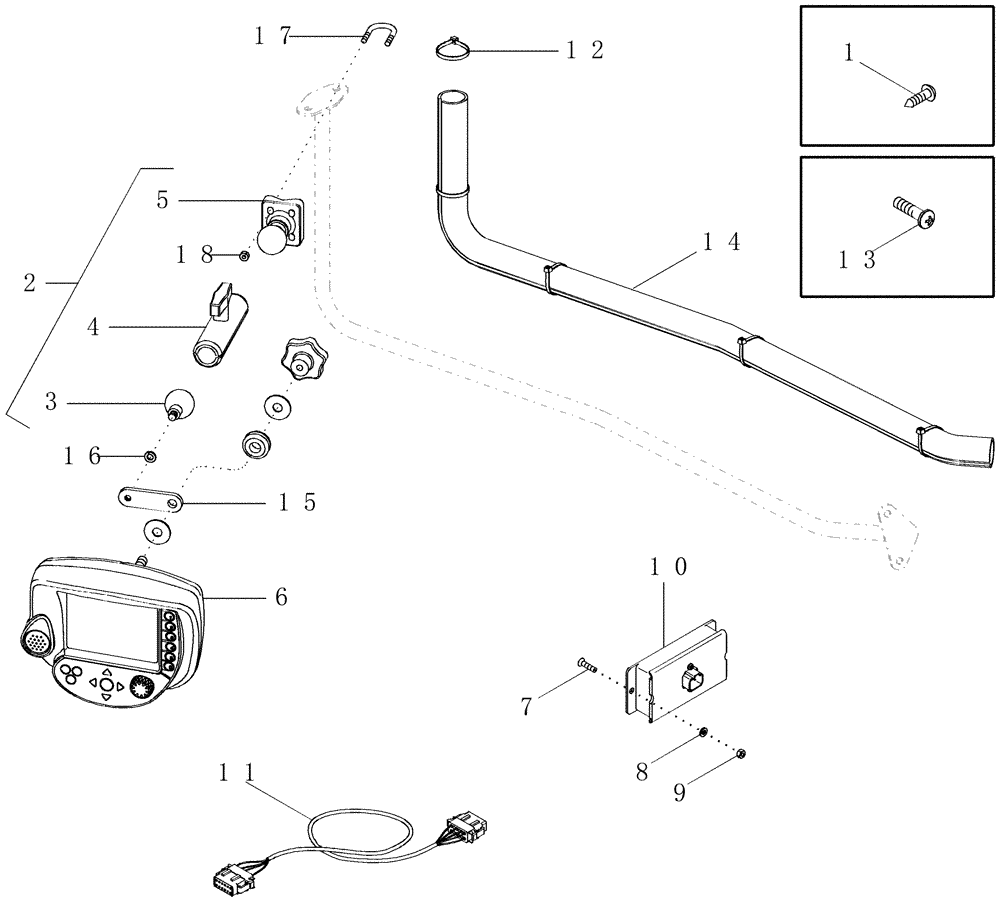

Запчасти Case IH MAGNUM 255 (04-38) - MONITOR - ACCUGUIDE (04) - ELECTRICAL SYSTEMS

1

780-14625

SELF-TAP SCREW,Hex Hd, M6.3 x 25

4шт.

2

87433368

HOLDER

Inc. 3 - 5

1шт.

3

87432348

RAM BOTTOM

1шт.

4

408863A1

RAM BOTTOM

1шт.

5

408865A1

RAM FOOT

1шт.

6

87359217

CONTROL MONITOR

With Software

1шт.

7

843-2625

SCREW,Phillips Drive, Flat HD, M6 x 25mm, Cl 4.8

2шт.

8

892-11006

LOCK WASHER,M6

2шт.

9

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

10

284638A2

ELEC CONNECTOR,4 Pin

Active Terminator

2шт.

11

87435691

HARNESS

Jumper

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

14шт.

13

760-14416

SELF-TAP SCREW,Pan Hd, M4.8 x 16

4шт.

14

87435704

CONDUIT

(If Equipped)

1шт.

15

87432354

BRACKET

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

17

19-6258

U-BOLT

2шт.

18

425-104

NUT,1/4"-20, Cl 5

4шт.
