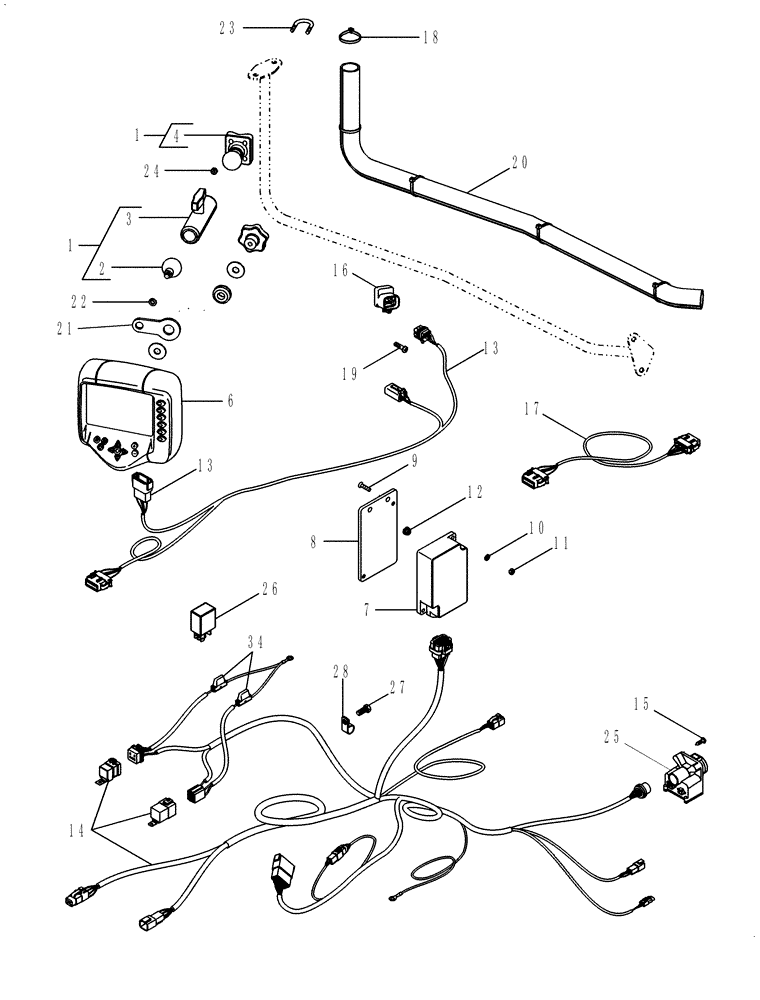

Запчасти Case IH MAGNUM 255 (04-37) - ISO 11783 HARNESS AND MONITOR (04) - ELECTRICAL SYSTEMS

1

87433368

HOLDER

Assembly, Monitor Inc. 2 - 4

1шт.

2

87432348

RAM BOTTOM

1шт.

3

408863A1

RAM BOTTOM

1шт.

4

408865A1

RAM FOOT

1шт.

6

87393981

CONTROL MONITOR

Monitor, Control W/Software, Start Serial: Z7RZ01521

1шт.

7

86989612

ECU

W/Software

1шт.

7

86989612R

REMAN-MODULE

Reman For New PN 86989612

1шт.

7

86989612C

CORE-MODULE

Return Number

1шт.

84473221R

REMAN-MODULE

MAGNUM 255 (1/06-), Reman For New P/N 86989612

1шт.

84473221C

CORE-MODULE

Return Number

1шт.

8

87406980

PLATE

Mounting

1шт.

9

843-2625

SCREW,Phillips Drive, Flat HD, M6 x 25mm, Cl 4.8

2шт.

10

892-11006

LOCK WASHER,M6

2шт.

11

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

12

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

6шт.

13

87418143

HARNESS

Inside Cab (Shown), Serial Range: -Z7RZ01521

1шт.

13

87695463

HARNESS

Inside Cab, Start Serial: Z7RZ01521

1шт.

14

87313259

HARNESS

Outside Cab (Shown), Serial Range: -Z7RZ01521

1шт.

14

87695465

HARNESS

Outside Cab, Start Serial: Z7RZ01521

1шт.

15

780-14625

SELF-TAP SCREW,Hex Hd, M6.3 x 25

4шт.

16

87601142

ELEC CONNECTOR,Female, 6 Cavities

1шт.

17

87435691

HARNESS

Monitor Jumper (Shown), Serial Range: -Z7RZ01521

1шт.

17

87544769

HARNESS

Monitor Jumper, Start Serial: Z7RZ01521

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

5шт.

19

760-14416

SELF-TAP SCREW,Pan Hd, M4.8 x 16

2шт.

20

87435704

CONDUIT

1шт.

21

87313872

BRACKET

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

23

86632541

U-BOLT,1/4” - 20, 1.75” L x 1” W

2шт.

24

425-104

NUT,1/4"-20, Cl 5

4шт.

25

87418273

ELEC CONNECTOR

1шт.

26

87414866

RELAY,12V, 20A

20 Amp

1шт.

27

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

1шт.

28

87313355

CLAMP,38.1mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

30

811-6025

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 25mm, Cl 8.8

(Not Shown)

2шт.

31

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

(Not Shown)

4шт.

32

A169433

CABLE TIE,304.8mm L

(Not Shown)

1шт.

33

780-14625

SELF-TAP SCREW,Hex Hd, M6.3 x 25

(Not Shown)

4шт.

34

338054A1

FUSE,20A, Maxival, Yellow

1шт.

34

5173264

FUSE,30A, Maxi, Green

30 Amp, Maxi

1шт.
