Запчасти Case IH MAGNUM 255 (04-33) - RADIOS, SPEAKERS AND ANTENNAS (04) - ELECTRICAL SYSTEMS

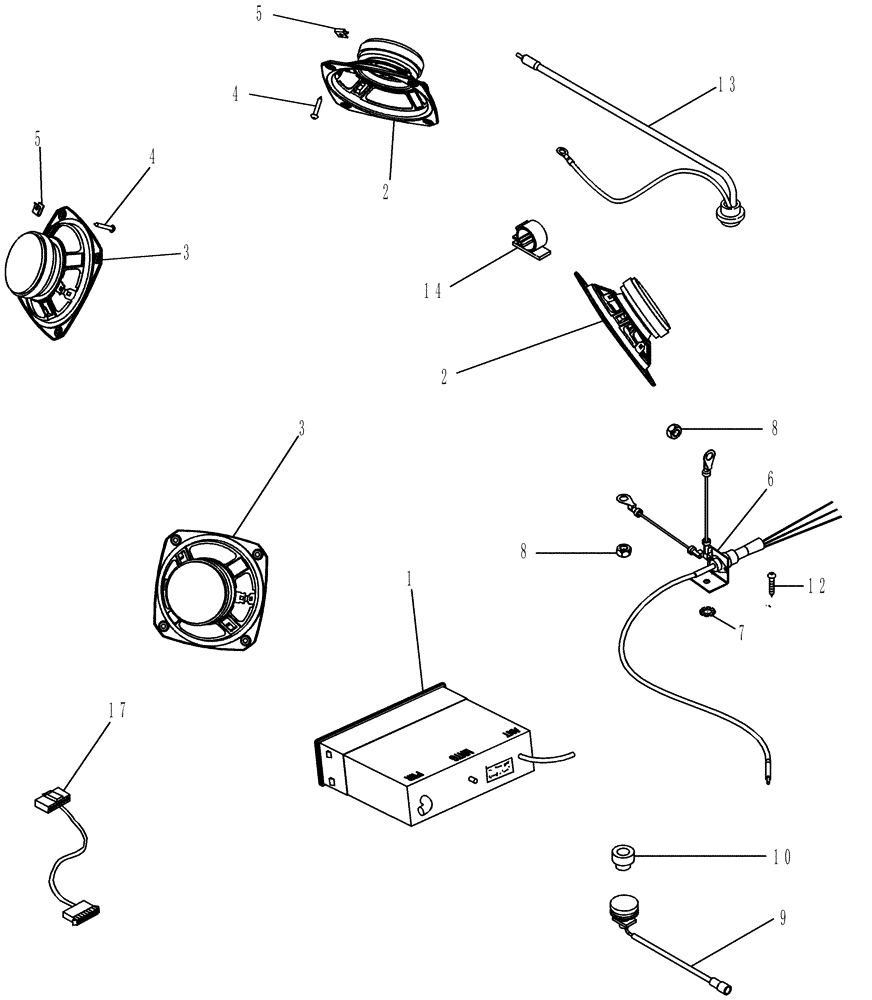

Схема запчастей Case IH MAGNUM 255 - (04-33) - RADIOS, SPEAKERS AND ANTENNAS (04) - ELECTRICAL SYSTEMS
14
5
8
7
1
8
4
13
4
10
2
12
2
6
9
3
3
17
5

Артикул

Название

Примечание

Количество

1

87714993

RADIO

AM/FM/WB with Front Aux Input Jack for Portable Sirius and XM Players and Ipods, If Equipped

1шт.

1

355623A2

RADIO

AM/FM Stereo, With Cassette Tape Player, If Equipped

1шт.

1

325061A2

RADIO

AM/FM/WB,CSS/Changer Ready

1шт.

1

87714994

RADIO

AM/FM/WB/CD with Front Aux Input Jack for Portable Sirius and XM Players and Ipods

1шт.

2

87621241

SPEAKER

5-1/4 in Coaxial

2шт.

3

87576280

SPEAKER

5-1/4 in Woofer, Rear

2шт.

4

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

16шт.

5

177269A1

SPRING NUT,M4.2

16шт.

6

409426A3

ANTENNA,AM/FM/WB 3 Wire

3-Wire

1шт.

7

893-11008

LOCK WASHER,Ext Tooth, M8

Antenna Bracket

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Ground Wire

2шт.

9

404694A2

CABLE

B/B Radio Antenna, If Equipped

1шт.

10

182045A1

GROMMET

1шт.

11

177269A1

SPRING NUT,M4.2

Used with 9, Not Illustrated

8шт.

12

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

Used with 9, Not Illustrated

8шт.

13

318323A1

CABLE

Radio Antenna

1шт.

14

169850C2

CABLE CLIP

1шт.

17

303433A1

HARNESS

CD, Serial Range: Player-Radio

1шт.

Выбрано товаров: 18
