Запчасти Case IH MAGNUM 255 (04-31) - C - POST ROOF LIGHTS & FRONT HITCH LIGHTING (04) - ELECTRICAL SYSTEMS

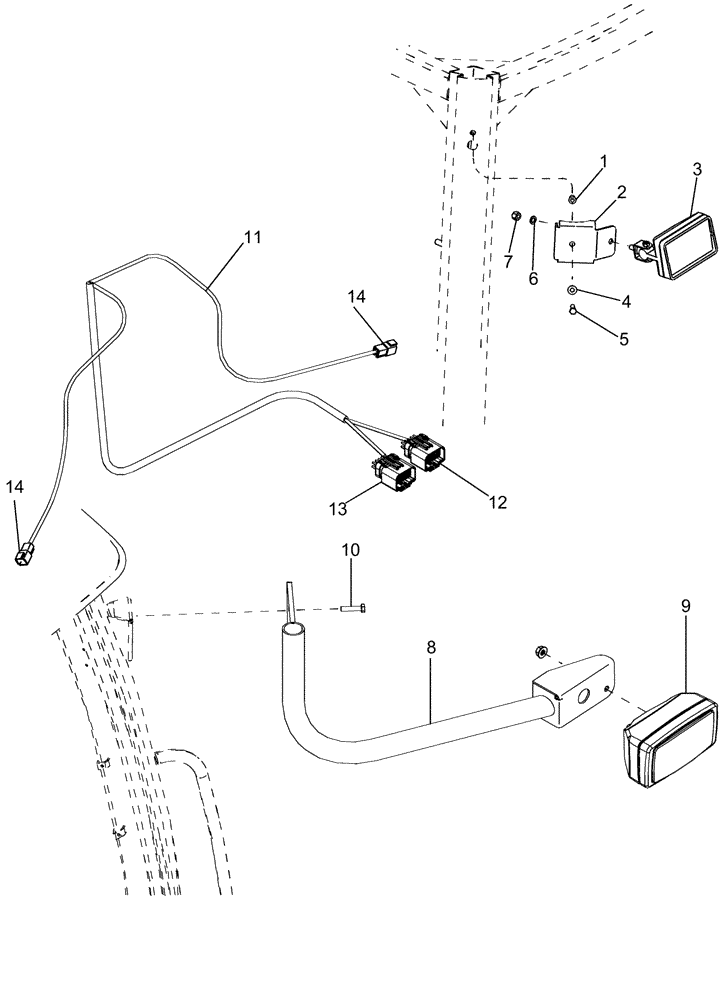

Схема запчастей Case IH MAGNUM 255 - (04-31) - C - POST ROOF LIGHTS & FRONT HITCH LIGHTING (04) - ELECTRICAL SYSTEMS
9
11
4
13
7
6
5
3
8
10
14
1
14
2
12

Артикул

Название

Примечание

Количество

1

F35448

RIVET,8mm OD x 18mm L

M8

2шт.

2

87417645

BRACKET

2шт.

3

275333A1

LAMP, WORK

LIGHT, WORK Right Hand, Shown

1шт.

3

275334A1

LAMP, WORK

LIGHT, WORK Left Hand

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

5

514-637

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

87378019

BRACKET

Left Hand (Shown)

1шт.

8

87378018

BRACKET

Right Hand

1шт.

9

87403654

HEADLAMP,Halogen, 12V, 55W, Clear

LH Dip (Shown)

2шт.

9

87403655

HEADLAMP,Halogen, 12V, 55W, Clear

RH Dip

2шт.

10

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

11

87603616

HARNESS

Inc. 12 - 14

1шт.

12

87382922

WIRE CONNECTOR,Female, 10 Cavities

Headlamp Harness

1шт.

13

87382923

ELEC CONNECTOR,Male, 10 Cavities

Front to Rear Harness

1шт.

14

225326C1

ELEC CONNECTOR,Male, 4 Pin

Worklight, Left/Right

2шт.

Выбрано товаров: 17
