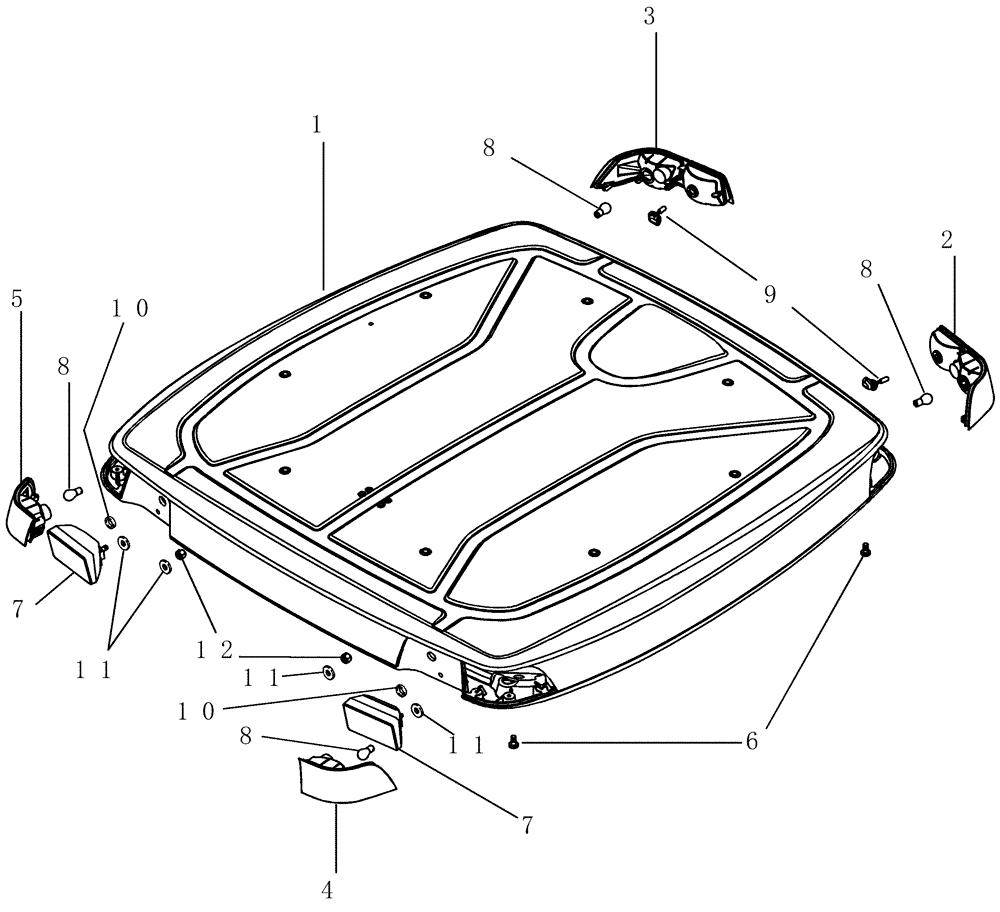

Запчасти Case IH MAGNUM 255 (04-28) - LAMPS - CAB ROOF (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Roof

1шт.

See Figure 09-12

1шт.

2

279220A1

LIGHT ASSY.

RH, Front, Work & Warning

1шт.

3

279219A1

LIGHT ASSY.

LH, Front, Work & Warning

1шт.

4

279223A1

WARNING LIGHT

RH, Warning

1шт.

5

279224A1

WARNING LIGHT

Left Hand Rear, Warning Lamp

1шт.

6

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

10шт.

7

178345A1

LAMP, WORK,Halogen, 12V, 55W, Clear

LIGHT, WORK

2шт.

See Figure 04-30

1шт.

8

A41264

BULB,#1156, 12V

4шт.

9

323094A1

BULB

894-12V

2шт.

10

182045A1

GROMMET

2шт.

11

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
