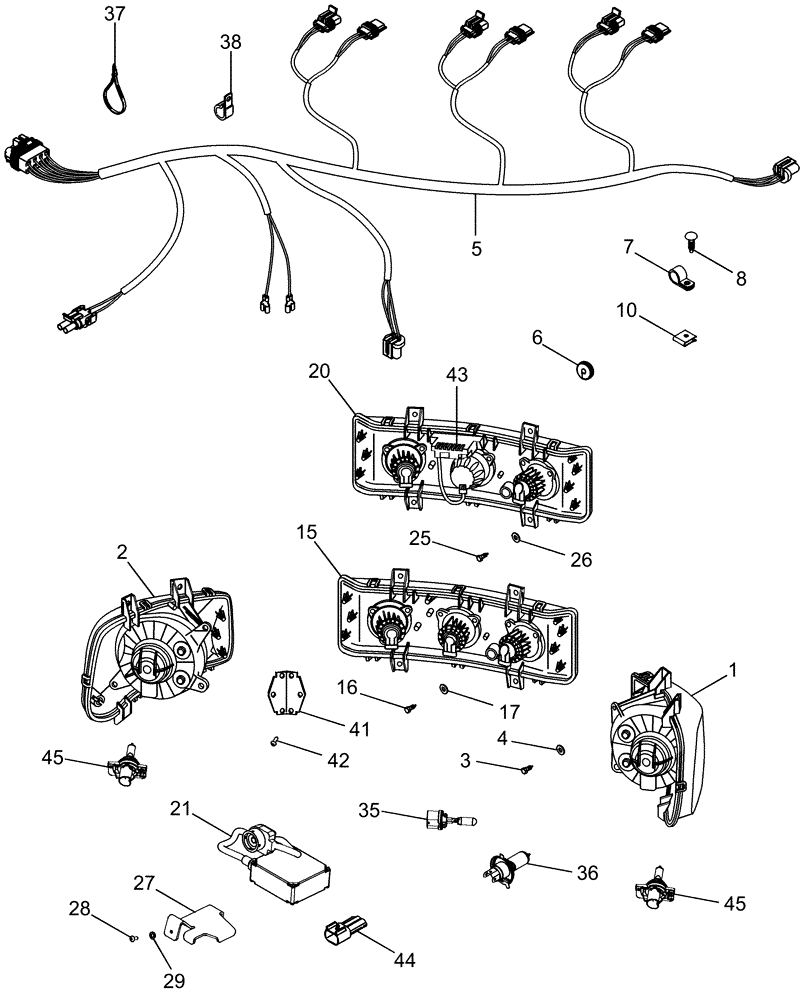

Запчасти Case IH MAGNUM 255 (04-25) - HEADLAMPS (04) - ELECTRICAL SYSTEMS

1

87455675

RH HEADLAMP

Right Hand Dip, Inc. 35, 36

1шт.

2

87455674

LH HEADLAMP

Right Hand Dip, Inc. 35, 36

1шт.

3

779-14619

SELF-TAP SCREW,Hex Hd, M6.3 x 19

6шт.

4

495-21031

WASHER,1/4"

6шт.

4

259713A1

CLIP

(Not Shown)

6шт.

5

87366273

HARNESS

1шт.

6

411632A1

GROMMET

1шт.

7

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

8

93199C1

FASTENER

2шт.

10

96900C1

SPRING NUT,U, #10-16, Panel type

4шт.

15

87455676

HEADLAMP,Halogen, 12V, 60W

Center, Halogen, Inc. 36

1шт.

16

779-14619

SELF-TAP SCREW,Hex Hd, M6.3 x 19

4шт.

17

495-21031

WASHER,1/4"

4шт.

20

87308895

WORK LAMP

Center, Single HID Lamp w/ 2 Outer Halogen Lamps

1шт.

20

87455677

WORK LAMP

Center, 3 HID Lamp

1шт.

21

322332A1

BALLAST

1шт.

25

779-14619

SELF-TAP SCREW,Hex Hd, M6.3 x 19

4шт.

26

495-21031

WASHER,1/4"

4шт.

27

319929A1

SUPPORT

1шт.

28

760-14313

SELF-TAP SCREW,Phillips Drive, Pan HD, M4.2 x 1.4 x 13mm

1шт.

29

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

35

87283179

BULB,H4, 12V, 60/55W

1шт.

36

323093A1

BULB

885-12V, Work Lamp

1шт.

37

291207C1

CLAMP

3шт.

38

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

5шт.

41

87314919

BRACKET

2шт.

42

87316148

SELF-TAP SCREW

3.5 x 16

14шт.

43

87316350

COVER

1шт.

44

87366993

ELEC CONNECTOR

3шт.

45

87365799

BULB

Cover

1шт.
