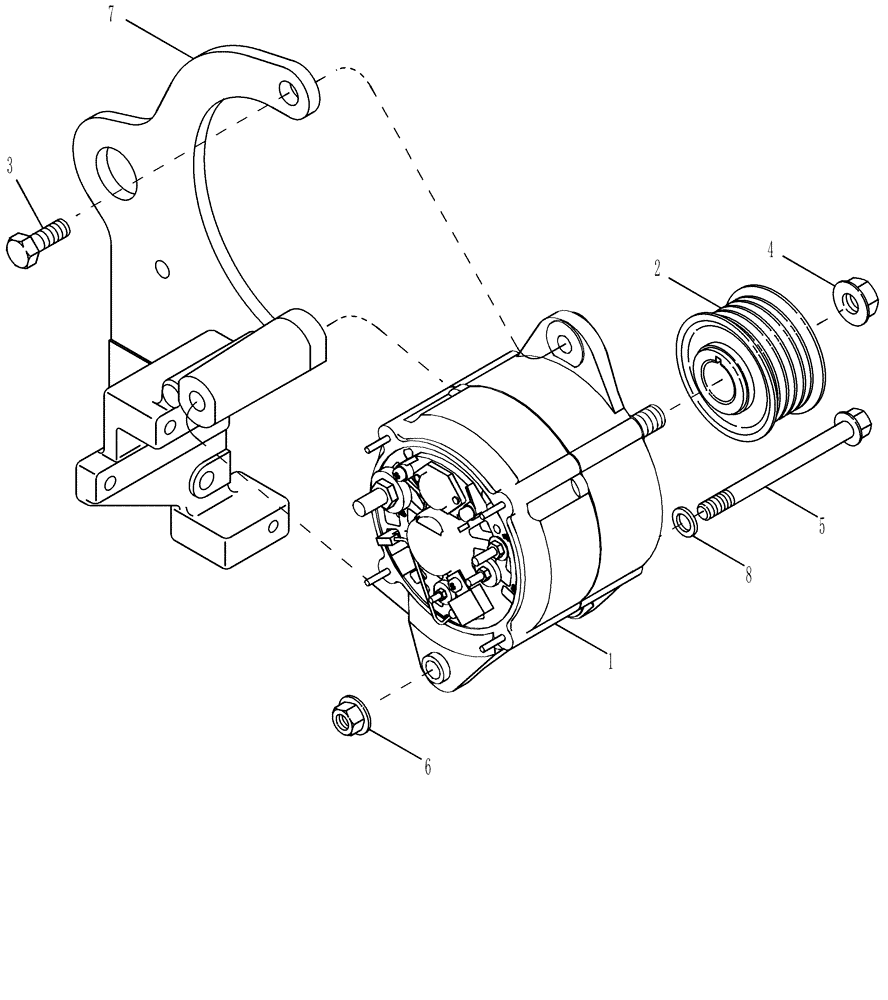

Запчасти Case IH MAGNUM 255 (04-18) - ALTERNATOR - MOUNTING (04) - ELECTRICAL SYSTEMS

1

87715398

ALTERNATOR,12V, 200A

200 amp, Start Serial: Z8RZ01320

1шт.

1

87715398R

REMAN-ALTERNATOR

Remanufactured Alternator 200A, Start Serial: Z8RZ01320

1шт.

1

87715398C

CORE-ALTERNATOR

Return Part Number, Start Serial: Z8RZ01320

1шт.

1

87645566

ALTERNATOR

150 amp, Serial Range: -Z8RZ01320

1шт.

1

87645566R

REMAN-ALTERNATOR

150A

1шт.

1

87645566C

CORE-ALTERNATOR

Return Part Number

1шт.

1

87645567

ALTERNATOR

175 amp, Serial Range: -Z8RZ01320

1шт.

1

87645567R

REMAN-ALTERNATOR

175A

1шт.

1

87645567C

CORE-ALTERNATOR

Return Part Number

1шт.

2

87471474

PULLEY,70.66mm OD

1шт.

3

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

4

NSS

NOT SOLD SEPARAT

NUT, M16

1шт.

5

397393

BOLT,M12 x 1.75 x 167.68mm OAL, Cl 8.8

1шт.

6

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

1шт.

7

87310736

SUPPORT

Alternator, Serial Range: -Z8RZ01320

1шт.

7

84169068

SUPPORT

Alternator, Start Serial: Z8RZ01320

1шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.
