Запчасти Case IH MAGNUM 255 (04-17) - CONTROLS - RIGHT FENDER CONSOLE, WITH ATC (04) - ELECTRICAL SYSTEMS

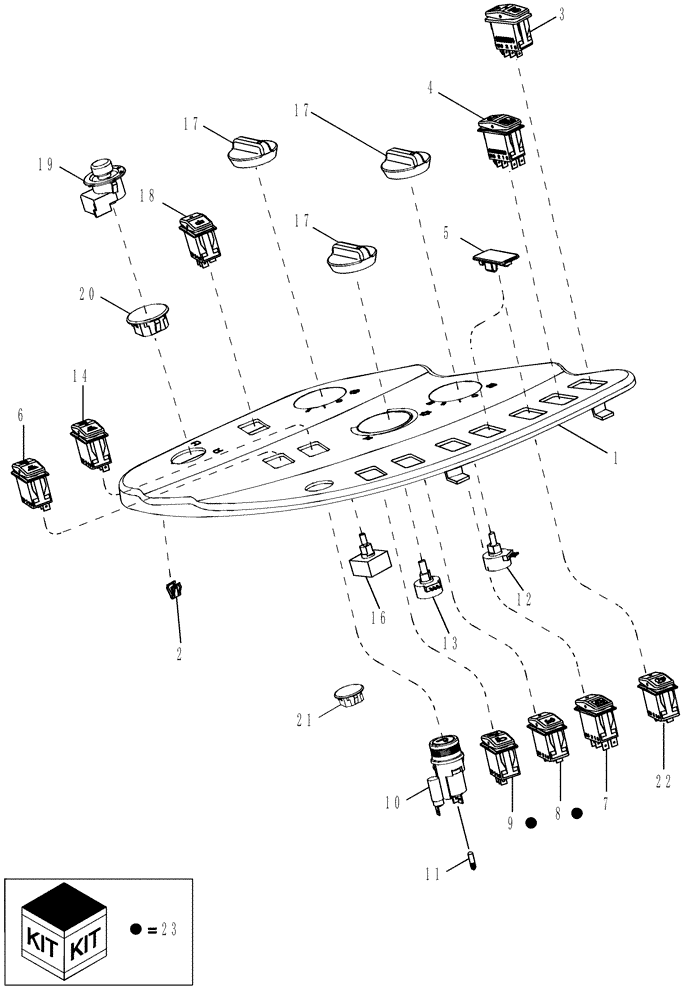

Схема запчастей Case IH MAGNUM 255 - (04-17) - CONTROLS - RIGHT FENDER CONSOLE, WITH ATC (04) - ELECTRICAL SYSTEMS
21
16
12
17
17
6
23
8
23
22
23
7
10
11
4
20
13
9
18
2
17
5
3
14
1
19
23

Артикул

Название

Примечание

Количество

1

87451319

PANEL

1шт.

2

278316A2

CLIP

2шт.

3

86989944

SWITCH

Ride Control, Standard

1шт.

3

86989964

SWITCH

Ride Control, Pickup Hitch, Latch

1шт.

4

87414324

SWITCH

Suspended Axle

1шт.

5

406324A2

PLUG

1шт.

6

87444610

SWITCH

Defog Momentary With LED

1шт.

7

87414325

SWITCH

Beacon-Strobe

1шт.

8

86989955

SWITCH

Cruise Control, On/Off

1шт.

9

86989953

SWITCH

Cruise Control, Increase/Decrease

1шт.

10

432239A1

CIGARETTE LIGHTER

Inc. 11

1шт.

11

437324A1

BULB

1шт.

12

326281A1

POTENTIOMETER,10,000 Ohm

Blower Motor

1шт.

13

326282A1

POTENTIOMETER,10,000 Ohm

Cab Temperature

1шт.

14

87454558

SWITCH

Climate Control

1шт.

16

357662A1

WINDSHIELD WIPER SWI

Front Wiper

1шт.

17

1331046C2

KNOB

3шт.

18

86989939

WINDSHIELD WIPER SWI

Rear and Right Hand Side

1шт.

19

280627A1

SWITCH, MIRROR ADJUS

Mirror

1шт.

20

87327317

PLASTIC PLUG

1шт.

21

82022823

PLUG

Rubber Plug, Without Lighter

1шт.

22

87711789

AUTO GUIDANCE DISENG

Accuguide

1шт.

23

87390173

SERVICE KIT

Cruise Control, Inc. 8, 9

1шт.

Выбрано товаров: 23
