Запчасти Case IH MAGNUM 255 (04-10) - ELECTRICAL COMPONENT MOUNTING - BSN Z7RZ05917 (04) - ELECTRICAL SYSTEMS

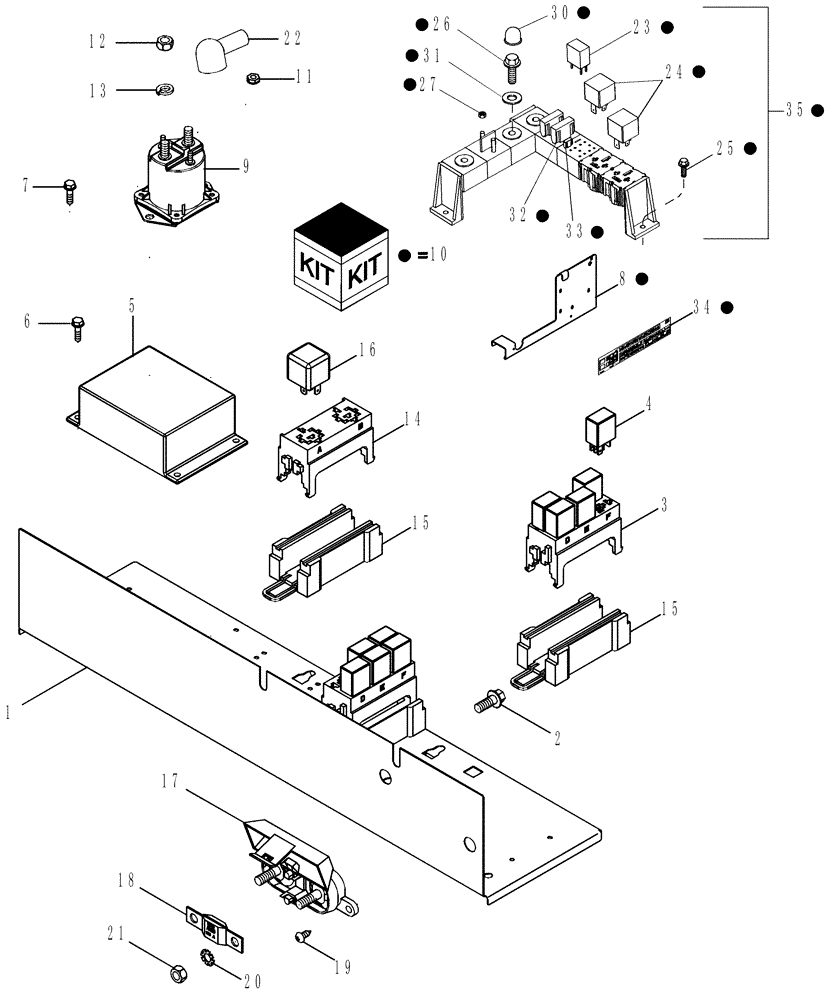

Схема запчастей Case IH MAGNUM 255 - (04-10) - ELECTRICAL COMPONENT MOUNTING - BSN Z7RZ05917 (04) - ELECTRICAL SYSTEMS
25
2
6
5
4
10
10
10
10
23
21
3
27
10
10
10
10
10
31
26
35
8
20
18
17
1
10
13
30
15
10
12
34
16
33
10
22
32
14
10
19
15
7
11
24
10
9

Артикул

Название

Примечание

Количество

1

87364238

PANEL

1шт.

2

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

3шт.

3

144417A1

CONNECTING BLOCK

2шт.

4

87414866

RELAY,12V, 20A

20 Amp

20шт.

5

84150025

MODULE

Flasher

1шт.

6

780-34319

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 19

2шт.

7

780-34319

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 19

2шт.

8

87701022

PLATE

1шт.

9

418485A1

SOLENOID SWITCH

No Longer Available, Must Upgrade With Kit 87702558

1шт.

10

87702558

KIT

Cab Power Solenoid, Inc. 8, 23 - 35

1шт.

11

193-1000

NUT,Keps, w/LW,#10-32

2шт.

12

425-105

NUT,5/16"-18, G5

2шт.

13

492-11031

LOCK WASHER,5/16"

2шт.

14

NSS

NOT SOLD SEPARAT

Block, Relay

1шт.

15

182163A1

ELECTRO/HYD CONTACT

2шт.

16

1983394C2

RELAY

1шт.

17

440038A1

JUNCTION BLOCK

1шт.

18

440572A1

FUSE,100A, Megaval

100 Amp

1шт.

19

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

2шт.

20

893-11008

LOCK WASHER,Ext Tooth, M8

4шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

22

87451484

BOOT

1шт.

23

416570A1

RELAY

1шт.

24

368459A1

RELAY,12V, 70A

70 Amp

2шт.

25

780-34319

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 19

3шт.

26

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

27

87825

NUT,#10-32

2шт.

29

321663A1

SLIDING PAD

Velcro

1шт.

30

87706767

BOOT

3шт.

31

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

32

338060A1

FUSE,60A, Mini, Blue

2шт.

33

121414A1

FUSE,20A, Mini, Yellow

1шт.

34

87730726

DECAL

1шт.

35

87673760

MODULE

Power Distribution, Inc. 23, 24, 26, 27, 32, 33, 34

1шт.

Выбрано товаров: 34
