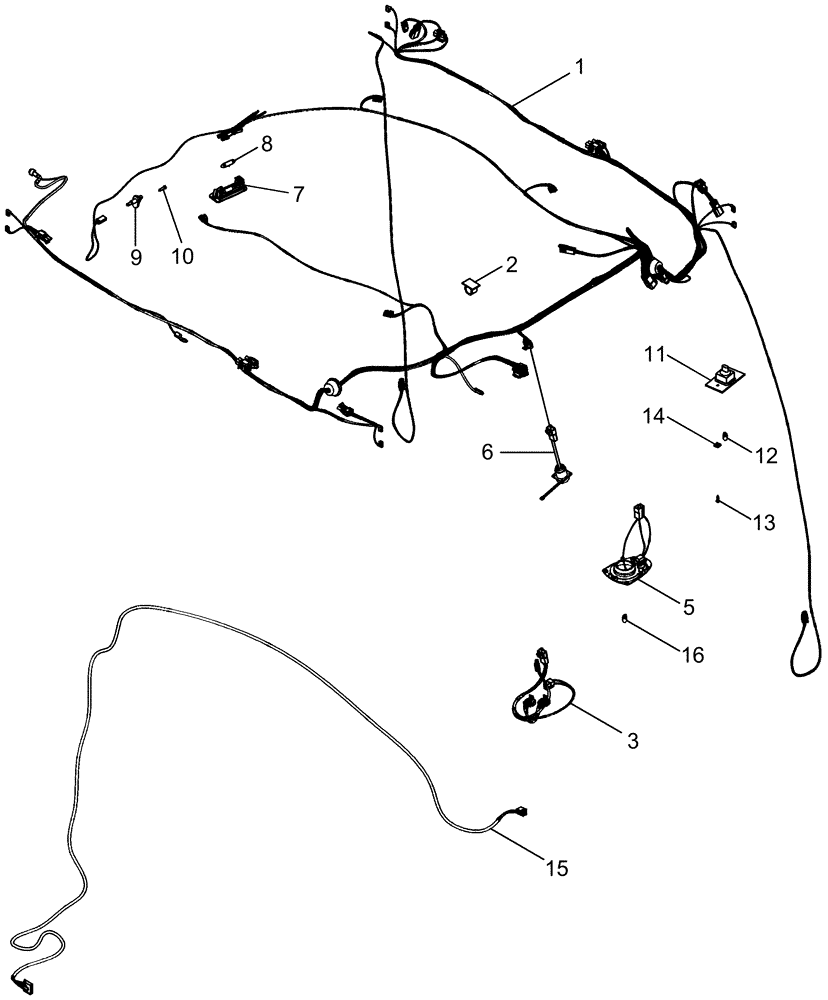

Запчасти Case IH MAGNUM 255 (04-09) - HARNESS - CAB ROOF, SHELF AND CD CHANGER (04) - ELECTRICAL SYSTEMS

1

87451533

HARNESS

Cab Roof

1шт.

2

169850C2

CABLE CLIP

3шт.

3

280584A3

HARNESS

Shelf

1шт.

5

87414959

LAMP

Map, Inc. 16

1шт.

6

227739A2

POWER SOCKET

Harness, Aux Power

2шт.

7

1983391C1

LAMP,12V, 10W

Dome, Inc. 8

1шт.

8

3050958R1

BULB,K, 12V, 10W

1шт.

9

1534229C1

PUSH BUTTON SWITCH

1шт.

10

765-14322

SELF-TAP SCREW,Oval Hd, M4.2 x 22

1шт.

11

368143A1

LAMP

Console Illuminator, Inc. 12

1шт.

12

D71346

TAIL LAMP,12V

No. 168

1шт.

13

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.

14

177269A1

SPRING NUT,M4.2

2шт.

15

303433A1

HARNESS

CD Changer, If Equipped

1шт.

16

373114A1

BULB

1шт.
