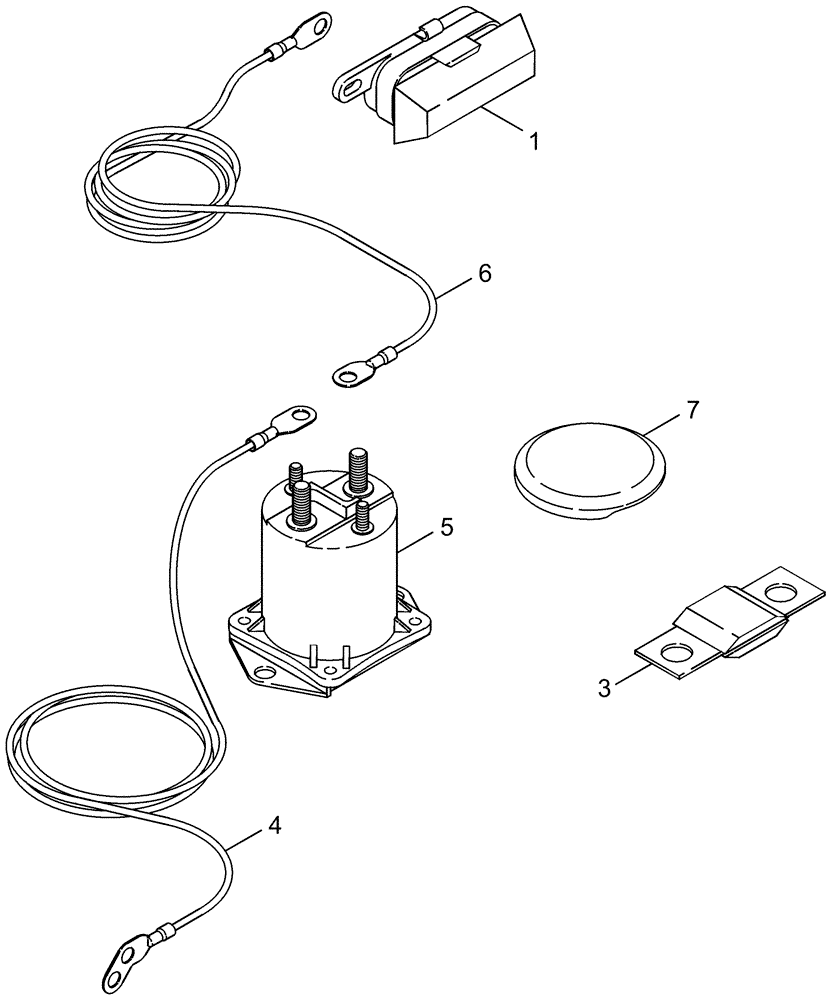

Запчасти Case IH MAGNUM 255 (04-06) - SOLENOID AND CABLES - GRID HEATER (04) - ELECTRICAL SYSTEMS

1

440038A1

JUNCTION BLOCK

1шт.

3

87455597

FUSE,200A

1шт.

4

87342409

CABLE

1шт.

5

87455571

SOLENOID

1шт.

6

87365712

CABLE

1шт.

7

87341554

COVER

1шт.

8

87542146

CAP

M6 Bolt Cover (Not Shown)

2шт.

9

193-1000

NUT,Keps, w/LW,#10-32

(Not Shown)

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

(Not Shown)

2шт.

11

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

(Not Shown)

2шт.

12

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

(Not Shown)

2шт.

13

893-11008

LOCK WASHER,Ext Tooth, M8

(Not Shown)

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

(Not Shown)

2шт.
