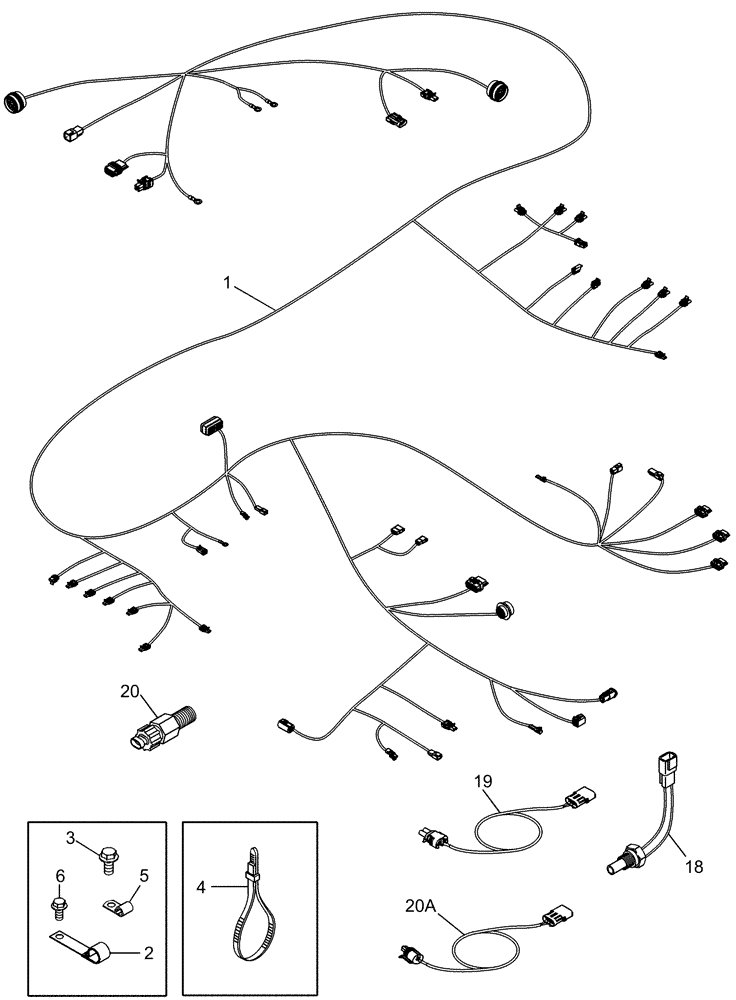

Запчасти Case IH MAGNUM 255 (04-05) - HARNESS-CHASSIS (04) - ELECTRICAL SYSTEMS

1

87658463

HARNESS

HARNESS Chassis

1шт.

2

133738A1

CLIP

2шт.

3

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

5

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

2шт.

6

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

1шт.

7

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

(Not shown)

1шт.

For Wire Harness Bracket To Tube Support Bracket

1шт.

18

87521424

TEMPERATURE SENDER

Transmission

1шт.

See Figure 07-06

1шт.

19

366867A2

HARNESS

Dual Speed PTO Sensor

1шт.

20

87548197

SENSOR

Dual Speed PTO Replaces A186004

1шт.

See Figure 06-35

1шт.

Also Order 87651813 For Initial Replacement

1шт.

20a

87651813

HARNESS

Dual Speed PTO

1шт.

21

169850C2

CABLE CLIP

Harness (Not Shown)

2шт.

22

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

(Not Shown)

1шт.

23

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

(Not Shown)

1шт.

24

829-1406

NUT,Hex, M6 x 1, Cl 10.9

(Not Shown)

1шт.

25

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

(Not Shown)

3шт.

On Master Solenoid Stack

1шт.

26

87340323

BRACKET

(Not Shown)

1шт.

27

825-5148

SERRATED NUT,M8, Flg Ser

(Not Shown)

1шт.

28

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

(Not Shown)

2шт.

Harness Clip On Tube Clamp And Harness Clip On L Bracket

1шт.

29

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

(Not Shown)

1шт.

30

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

(Not Shown)

2шт.

Harness Clip On Master Valve And Harness Ground Lug On Remote Valve

1шт.

31

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

(Not Shown)

2шт.
