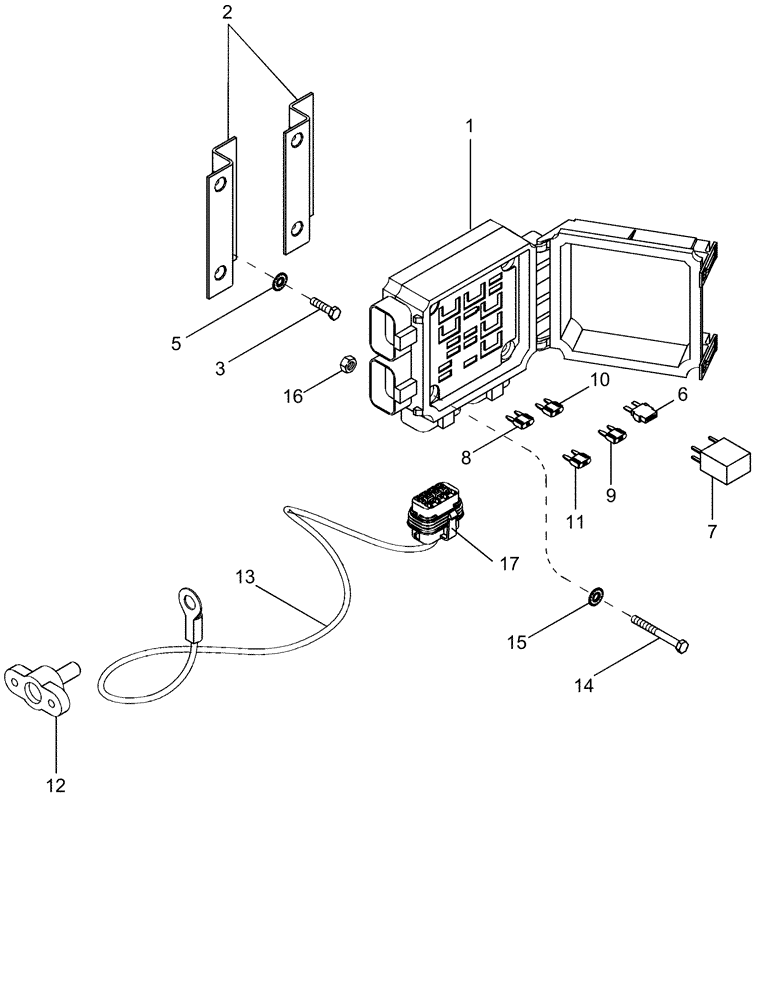

Запчасти Case IH MAGNUM 255 (04-02) - POWER DISTRIBUTION - BSN Z7RZ01521 (04) - ELECTRICAL SYSTEMS

1

441480A2

BOX, FUSE

Engine

1шт.

2

87410072

BRACKET

Fuse Box

2шт.

3

87308282

SCREW,HWH, #10 - 32 x 3/4"

2шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

416569A1

DIODE ELEMENT,7300W

1шт.

7

416570A1

RELAY

5шт.

8

121413A1

FUSE,15A, Mini, Blue

4шт.

9

121414A1

FUSE,20A, Mini, Yellow

1шт.

10

121415A1

FUSE,25A, Mini, Clear

2шт.

11

121416A1

FUSE,30A, Mini, Green

1шт.

12

441483A1

TERMINAL CONNECTOR

Auxiliary Power

1шт.

13

441479A2

HARNESS

HARNESS, Tractor Auxillary Power, Inc. 17

1шт.

14

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

4шт.

15

893-11008

LOCK WASHER,Ext Tooth, M8

4шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

17

409107A1

ELEC CONNECTOR,Male, 8 Pin

Engine Harness

1шт.
