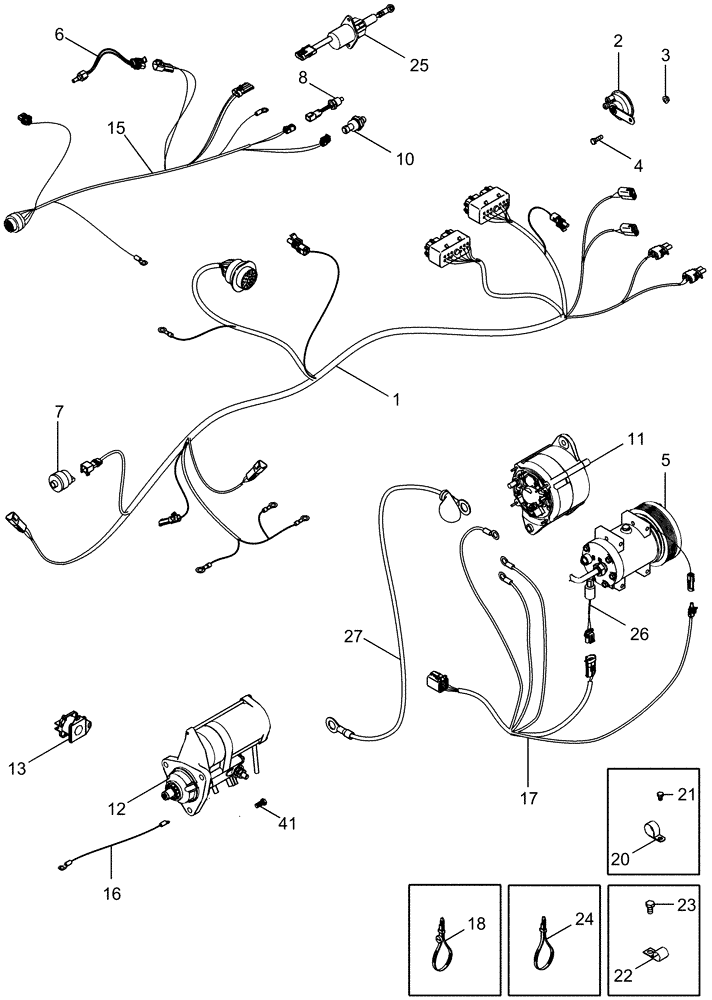

Запчасти Case IH MAGNUM 255 (04-01) - HARNESS - ENGINE (04) - ELECTRICAL SYSTEMS

1

87657659

HARNESS

HARNESS Engine

1шт.

2

237582A1

HORN

1шт.

3

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

REF

INSTRUCTION

Compressor Assy

1шт.

See Figure 09-33

1шт.

6

194346A1

SENSOR

Air to Air Temperature

1шт.

7

279492A1

RESTRICTION SWITCH

Air Filter

1шт.

8

87403454

TEMPERATURE SENDER,1/2" - 14

Coolant

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

10

405439A1

PRESSURE SWITCH

Oil

1шт.

11

REF

INSTRUCTION

Alternator Assy

1шт.

See Figure 04-15

1шт.

12

REF

INSTRUCTION

Starter Assy

1шт.

See Figure 04-16

1шт.

13

REF

INSTRUCTION

Solenoid

1шт.

See Figure 04-17

1шт.

14

REF

INSTRUCTION

Solenoid Assy, Ether Start

1шт.

See Figure 02-06

1шт.

15

84242489

HARNESS

HARNESS Engine Adapter

1шт.

16

87667355

CABLE

Starter to Intermediate Start relay

1шт.

17

87382529

HARNESS

Alternator/Air Conditioning Compressor

1шт.

18

87403339

CABLE TIE

CABLE STRAP

2шт.

20

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

21

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

22

229354A1

CLAMP,20.62mm ID, 12.7mm Bolt Hole, J Type

1шт.

23

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

24

291207C1

CLAMP

15 in

5шт.

25

REF

INSTRUCTION

Solenoid, Fuel Shutoff

1шт.

See Figure 03-04

1шт.

26

284273A2

SWITCH, A/C HIGH PRE

High Pressure A/C

1шт.

27

87365491

CABLE

Alternator/Starter

1шт.

35

516-23190

CLAMP,J, 3/4", Insul, 3/8" Bolt

(Not Shown)

2шт.

Lower Rear Of Hvac Compressor

1шт.

36

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

(Not Shown)

2шт.

Lower Rear Of Compressor And Water Bottle Bracket

1шт.

37

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

(Not shown)

1шт.

Top Right Of Compressor

1шт.

38

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

(Not shown)

1шт.

Lower Rear Of Hvac Compressor

1шт.

39

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

(Not Shown)

1шт.

Harness Top Right Of Compressor

1шт.

40

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

(Not Shown)

1шт.

To Hold Start Relay

1шт.

41

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

To Attach Cable to Starter

1шт.
