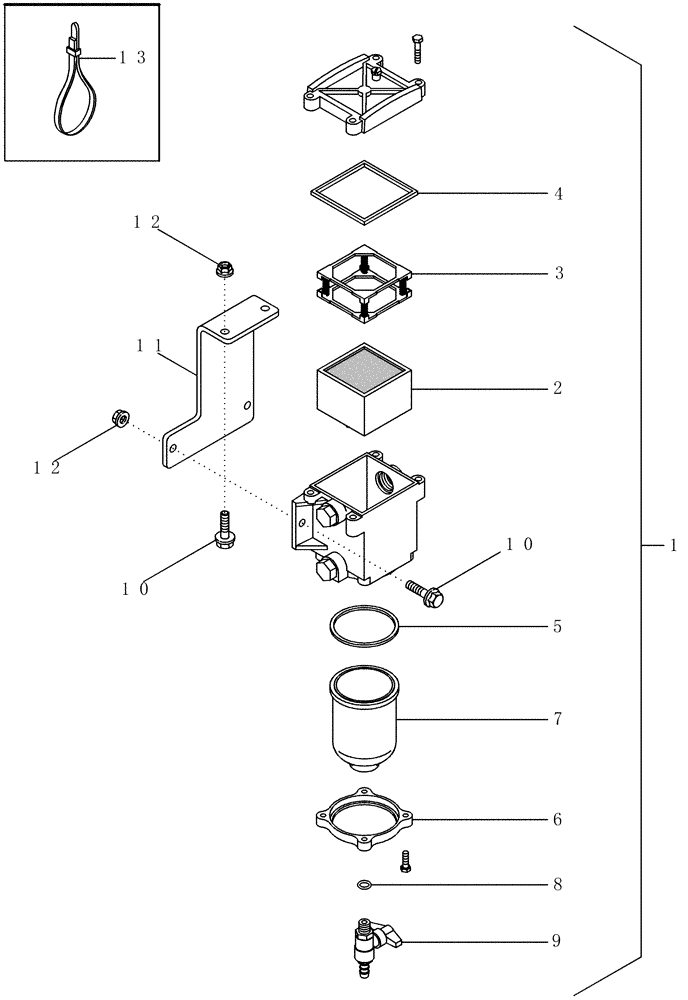

Запчасти Case IH MAGNUM 255 (03-10) - FUEL SEPARATOR FILTER (03) - FUEL SYSTEM

1

336429A2

FUEL FILTER

Inc. 2 - 9

1шт.

2

336430A1

FUEL FILTER

1шт.

3

336431A1

FRAME

1шт.

4

336432A1

GASKET

1шт.

5

336433A1

SEAL,70mm ID x 78mm OD x 3mm Thk

1шт.

6

369841A1

RETAINER

1шт.

7

369842A1

FILTER BOWL

1шт.

8

369843A1

O-RING,2.5mm Thk x 10.5mm ID

1шт.

9

369844A1

DRAINCOCK/TAP SUPPLY

1шт.

10

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

11

352416A2

SUPPORT

1шт.

12

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

13

A169433

CABLE TIE,304.8mm L

1шт.
