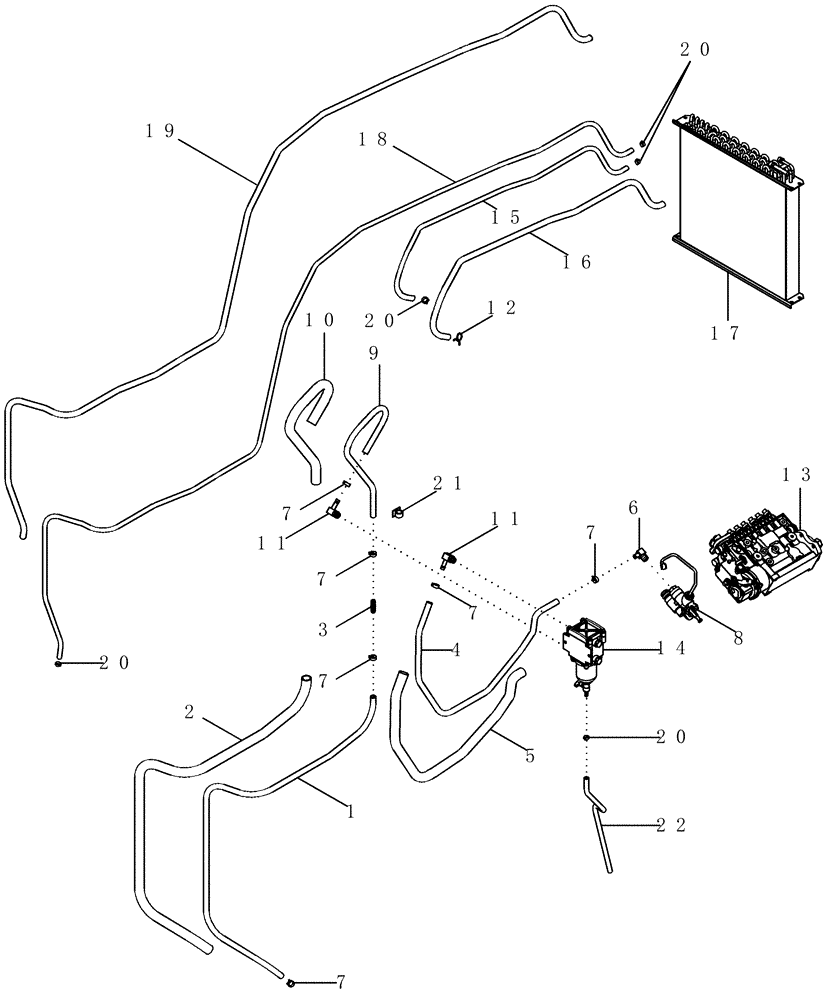

Запчасти Case IH MAGNUM 255 (03-09) - FUEL LINES (03) - FUEL SYSTEM

1

284735A2

HOSE,12.7mm ID x 1570mm L, SAE 30R7

1шт.

2

291260A2

CONDUIT

1500 mm (59 in)

1шт.

3

336427A1

COUPLING

Hose, 1/2 in

1шт.

4

356413A3

FUEL HOSE,12.70 mm ID x 1325.00 mm , SAE 30R7

Fuel Filter Outlet

1шт.

5

356415A2

CONDUIT

1240 mm (48-13/16 in)

1шт.

6

87391142

DRAINCOCK/TAP SUPPLY

DRAINCOCK/TAP, SUPPLY Elbow, 90 Degree

1шт.

7

214-1408

HOSE CLAMP,11.2mm - 19.8mm

6шт.

8

REF

INSTRUCTION

Pump

1шт.

See Figure 03-03

1шт.

9

356412A1

FUEL HOSE,12.70 mm ID x 900.00 mm , SAE 30R7

Fuel Filter Supply

1шт.

10

356414A1

CONDUIT

830 mm (32-11/16 in)

1шт.

11

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

2шт.

12

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

1шт.

13

REF

INSTRUCTION

Pump, Injection

1шт.

See Figure 03-04

1шт.

14

336429A2

FUEL FILTER

1шт.

See Figure 03-10

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE, 1415 mm (55.71 in), Cut From 194882A1

1шт.

16

87367299

CONDUIT

1500 mm (59 in)

1шт.

17

REF

INSTRUCTION

Cooler

1шт.

See Figure 09-34

1шт.

18

284736A3

FUEL HOSE,9.53 mm ID x 4150.0 mm , SAE 30R7

1шт.

19

87367298

CONDUIT

4300 mm (169 in)

1шт.

20

1348264C1

HOSE CLAMP

3/8 ID

5шт.

21

169850C2

CABLE CLIP

1шт.

22

360525A1

HOSE,15.88 mm ID x 700.00 mm, SAE 30R7

Filter Drain

1шт.
