Запчасти Case IH MAGNUM 255 (03-08) - FUEL TANKS (03) - FUEL SYSTEM

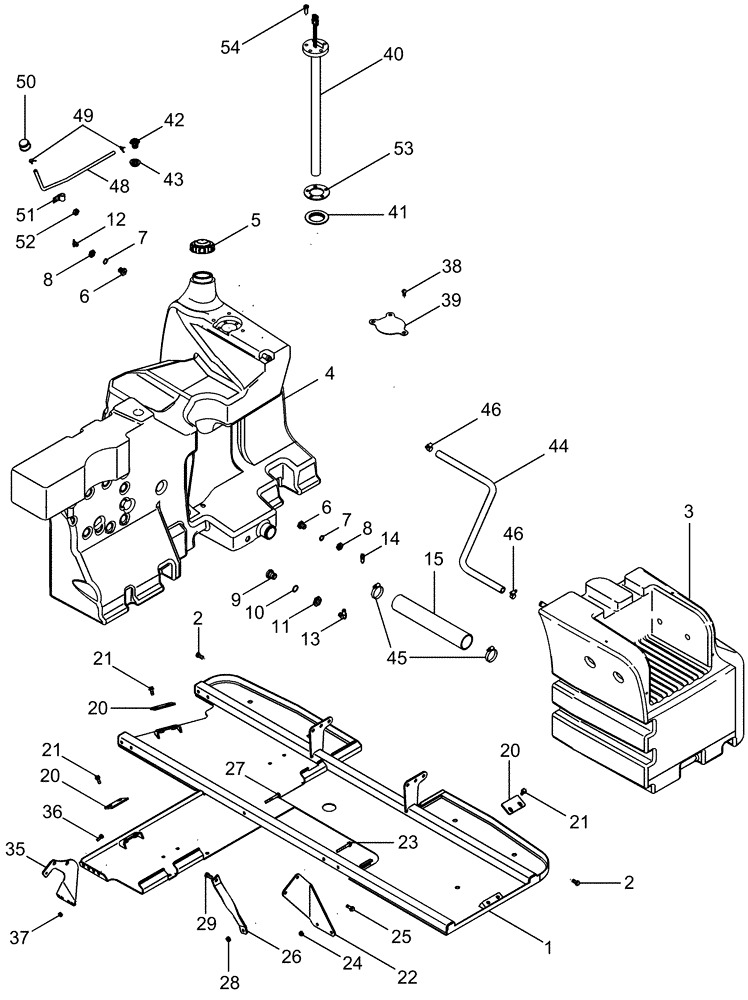

Схема запчастей Case IH MAGNUM 255 - (03-08) - FUEL TANKS (03) - FUEL SYSTEM
46
12
40
1
46
22
11
49
2
14
42
20
24
48
3
8
2
21
36
7
20
13
20
26
10
37
43
44
6
9
50
38
39
4
23
51
41
8
6
5
45
25
21
15
27
21
28
29
35
54
53
7
52

Артикул

Название

Примечание

Количество

1

363279A3

SUPPORT

1шт.

2

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

4шт.

3

87358308

FUEL TANK

Right Hand, 306 L (81 gal)

1шт.

4

87567185

FUEL TANK

Left Hand, 369 L (97 gal), Inc. 5 - 14

1шт.

5

87324388

FILLER CAP

1шт.

6

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

2шт.

7

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

8

1251791C1

JAM NUT,3/4" - 16 LH Thread

2шт.

9

87707148

FITTING

1шт.

10

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

11

282709A1

NUT

1шт.

12

217-103

COCK, DRAIN

1/4 PT

1шт.

13

87037348

ELBOW

90, 5/8 Tube x 3/8 PT

1шт.

14

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

3/8 x 1/4 in

1шт.

15

275798A1

FUEL HOSE,63.50 mm ID x 437.00 mm, SAE 30R6 or SAE 30R7

1шт.

20

243779A4

LARGE PLATE

PLATE, LARGE

3шт.

21

555-5

BOLT,Hvy Hex, M10 x 25mm, Cl 8.8

6шт.

22

295340A1

SUPPORT

1шт.

23

857-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

2шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

25

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

26

258942A1

SECURING STRAP

1шт.

27

857-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

1шт.

28

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

29

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

35

301790A3

BRACKET

1шт.

36

514-745

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

37

829-1510

NUT,M10, Cl 10

2шт.

38

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

39

87455076

CAP COVER

Fuel Sender

1шт.

40

87618181

SENDER UNIT

Fuel Sender

1шт.

41

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

42

275800A1

VALVE STEM

1шт.

43

255094A1

GROMMET

1шт.

44

275799A2

FUEL HOSE,19.05 mm ID x 1170.00 mm, SAE 30R6 or SAE 30R7

1шт.

45

214-3248

HOSE CLAMP,57mm - 79mm

2шт.

46

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

48

275801A1

FUEL HOSE

1шт.

49

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

50

87433010

BREATHER

1шт.

51

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

52

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

53

87537695

GASKET

1шт.

54

87622003

SCREW,M5 x 35mm

W/Gasket, M5 X 35

5шт.

Выбрано товаров: 44
