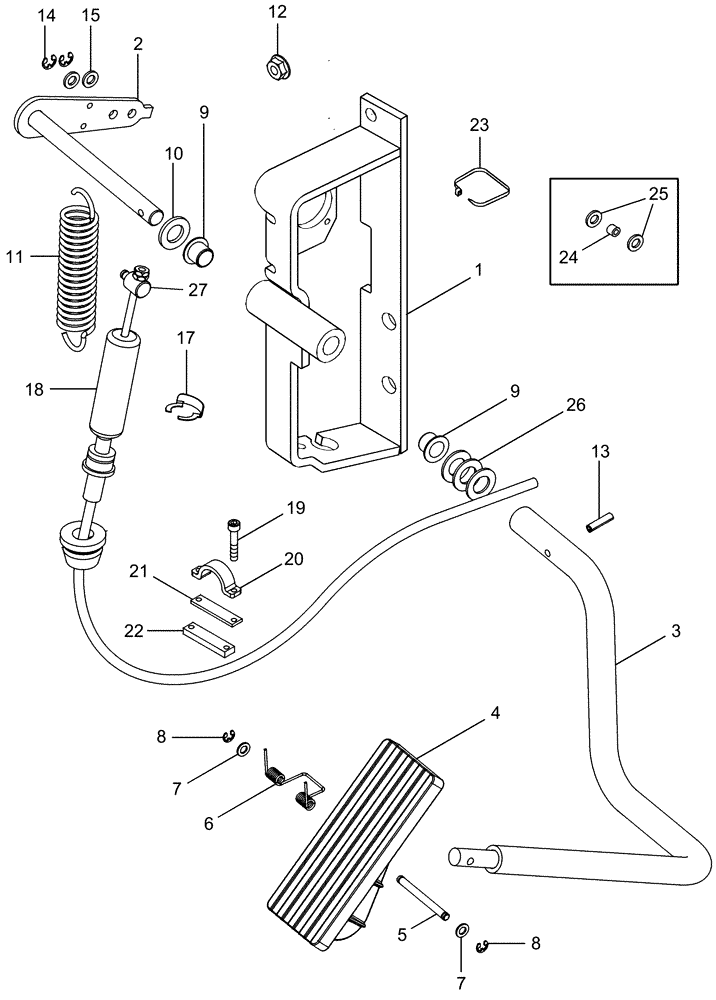

Запчасти Case IH MAGNUM 255 (03-07) - FOOT THROTTLE (03) - FUEL SYSTEM

1

404659A4

MOUNT

1шт.

2

446487A2

LEVER

1шт.

3

446488A1

TUBE

1шт.

4

297853A2

PEDAL

1шт.

5

255291A1

PIN,5mm OD x 56mm L

1шт.

6

256776A1

SPRING

1шт.

7

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

8

800-435

CIRCLIP,M5

2шт.

9

1533540C1

BUSHING,12mm ID x 14mm OD x 12mm L

2шт.

10

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

11

248913A2

SPRING

1шт.

12

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

13

838-3528

PIN,M5 x 28, Coiled

1шт.

14

800-316

CIRCLIP,M6

1шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

17

3223258R2

CIRCLIP

1шт.

18

295830A4

CABLE,2140mm L

Inc. 27

1шт.

19

461-31016

HEX SOC SCREW,#10 - 24 x 1"

2шт.

20

A75815

CLAMP

1шт.

21

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

1шт.

22

224900A1

LARGE PLATE

PLATE, LARGE

1шт.

23

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

3шт.

24

1971259C1

SPACER

3/8 x 7/32

1шт.

25

495-81107

WASHER,.281" x 7/8" x .060"

2шт.

26

495-81020

WASHER,17/32" x 1" x .030"

3шт.

27

307475A1

PIVOT

Control Cable

2шт.
