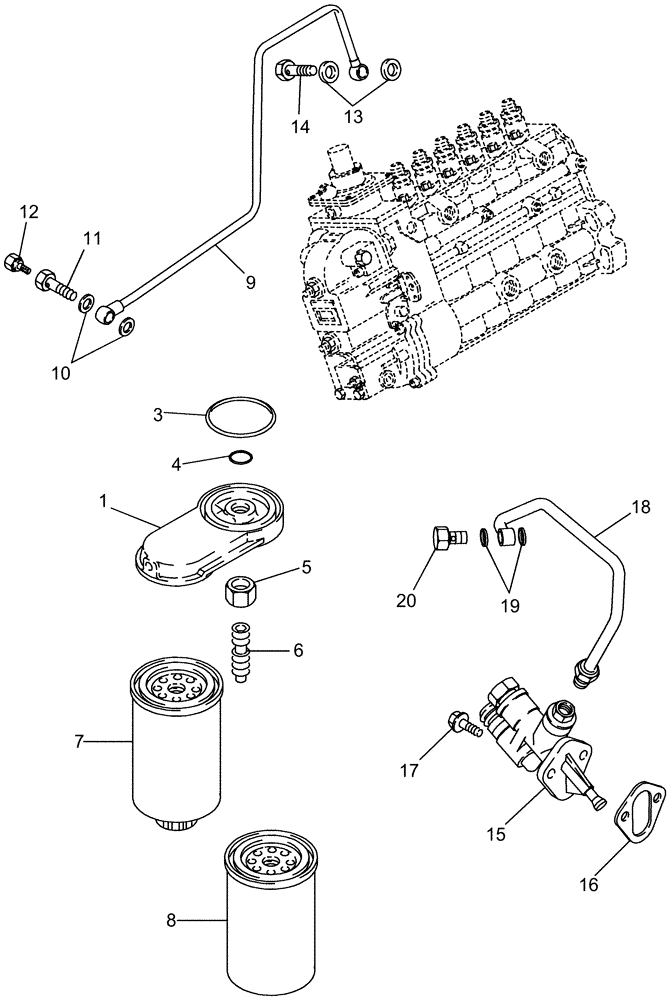

Запчасти Case IH MAGNUM 255 (03-03) - FUEL FILTER - PUMP, TRANSFER (03) - FUEL SYSTEM

1

84140384

FILTER HEAD

1шт.

3

84150002

SEALING RING

SEALRING 64 mm

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING 14 mm

1шт.

5

J903293

JAM NUT

M16

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

6a

A77470

SEPARATOR

Kit, Not Illustrated, Incl. 7, 8

1шт.

7

J930942

SEPARATOR

Primary

1шт.

8

J931063

FUEL FILTER

Secondary

1шт.

9

87673402

FUEL TUBE

1шт.

10

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1,5 mm

2шт.

11

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

12

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

1шт.

13

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

14

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

15

87473339

FUEL PUMP

1шт.

16

J939258

GASKET,1.21mm Thk

1шт.

17

J909310

SCREW,Hex Flg, M8 x 1.25 x 25mm, Cl 10.9

2шт.

18

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

1шт.

19

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1,5 mm

2шт.

20

J916361

BANJO BOLT

M12 x 24

1шт.
