Запчасти Case IH MAGNUM 255 (02-28) - GASKET KIT - CYLINDER BLOCK (02) - ENGINE

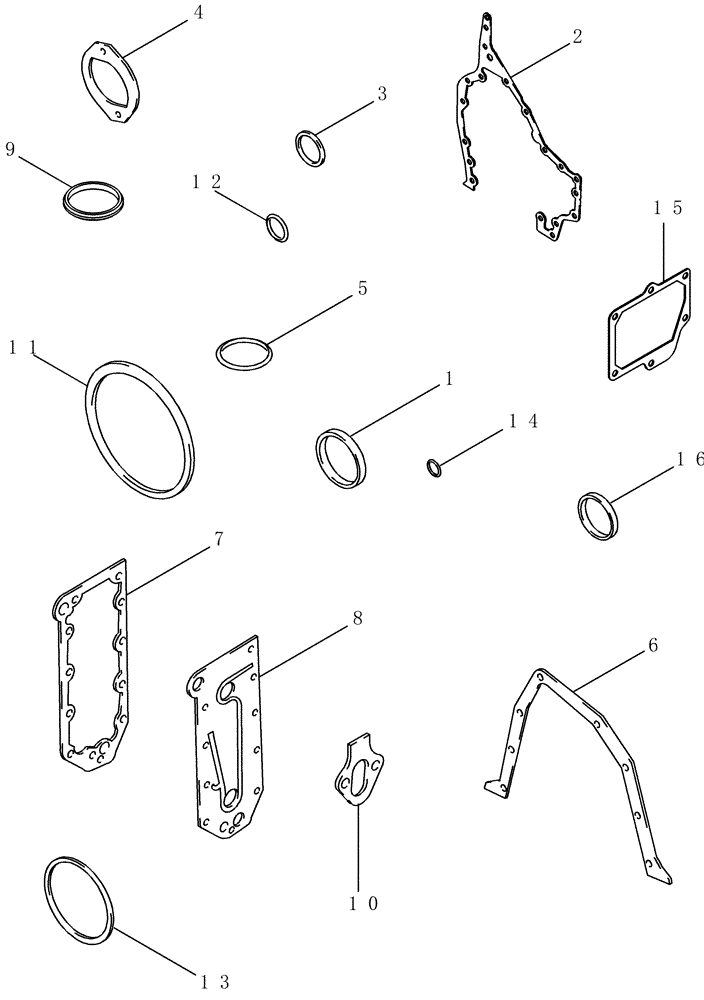

Схема запчастей Case IH MAGNUM 255 - (02-28) - GASKET KIT - CYLINDER BLOCK (02) - ENGINE
8
16
2
1
4
9
5
13
12
10
15
7
14
6
11
3

Артикул

Название

Примечание

Количество

87416435

GASKET KIT

Cylinder Block, Inc. 1 - 16

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

2

J944293

GASKET,1.01mm Thk

1шт.

3

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

4

J938655

GASKET,1.27mm Thk

1шт.

5

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

6

J914301

GASKET

1шт.

7

J918174

GASKET,0.71mm Thk

1шт.

8

J4063496

GASKET,0.8mm Thk

1шт.

9

J924605

SEAL

1шт.

10

J939258

GASKET,1.21mm Thk

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

13

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

14

J913994

O-RING

1шт.

15

87436828

GASKET

1шт.

16

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

1шт.

Выбрано товаров: 17
