Запчасти Case IH MAGNUM 255 (02-27) - GASKET KIT - VALVE GRIND (02) - ENGINE

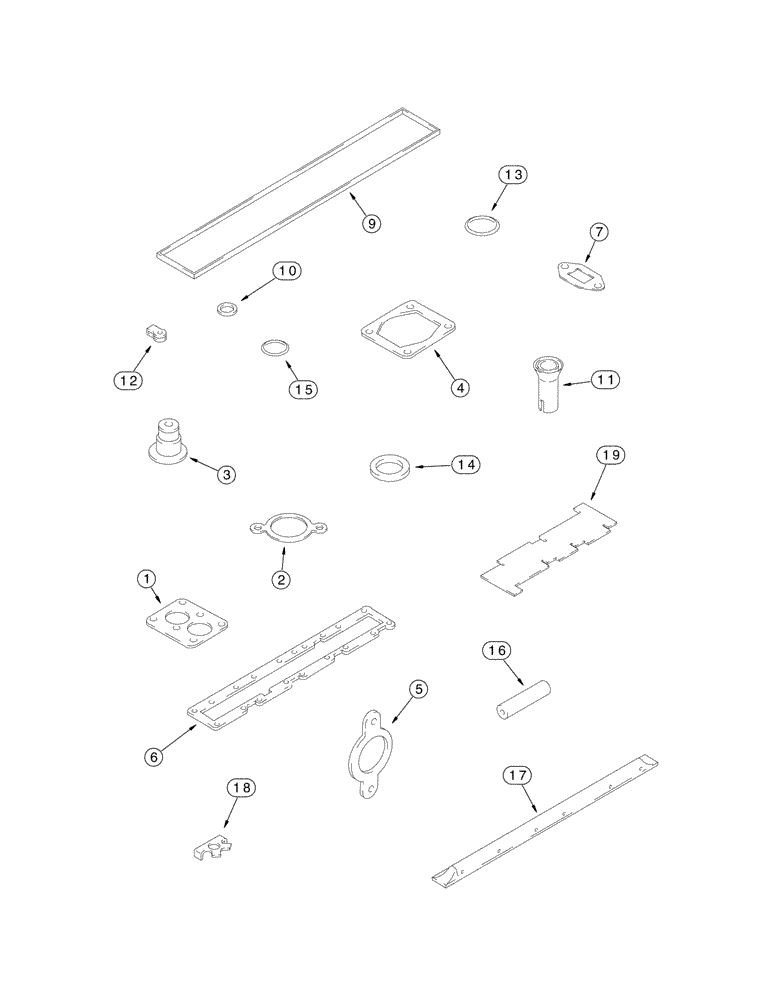

Схема запчастей Case IH MAGNUM 255 - (02-27) - GASKET KIT - VALVE GRIND (02) - ENGINE
5
11
13
2
9
16
4
15
18
12
6
1
14
3
17
10
7
19

Артикул

Название

Примечание

Количество

A77976

GASKET KIT

Valve Grind, Inc. 1 - 19

1шт.

1

J914310

GASKET,0.8mm Thk

1шт.

2

J918779

GASKET,1.19mm Thk

1шт.

3

J927642

SEAL

12шт.

4

J911941

GASKET

1шт.

5

J932063

MANIFOLD GASKET,1.78mm Thk

6шт.

6

J936993

MANIFOLD GASKET,0.76mm Thk

1шт.

7

J937706

GASKET,0.79mm Thk

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

6шт.

12

J903380

SEAL

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

16

J930827

HOSE,51.00 mm

1шт.

17

J919677

TUBE

1шт.

18

J914708

LOCKING PLATE

12шт.

19

87404692

GAUGE

1шт.

Выбрано товаров: 19
