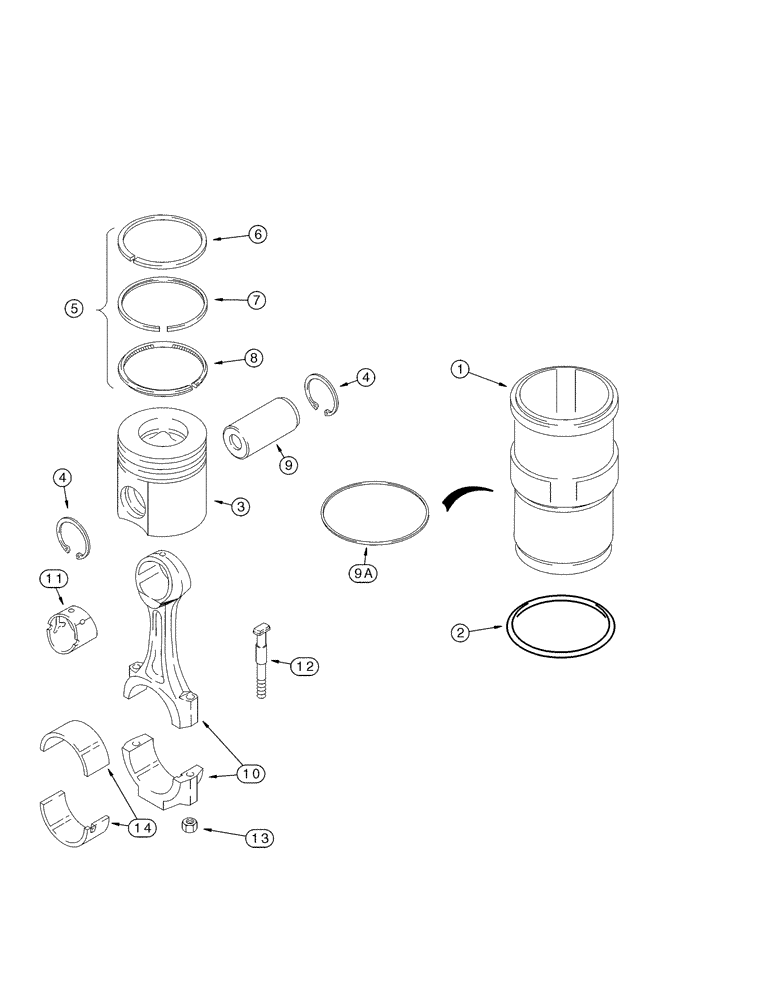

Запчасти Case IH MAGNUM 255 (02-26) - PISTONS - CONNECTING RODS (02) - ENGINE

A77912

PACKAGE, REPAIR

Standard, Inc. 1 - 8

6шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

A77853

PISTON & RINGS KIT

Standard, Inc. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J802429

PISTON RINGS KIT

Standard, Inc. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

9

J934046

PISTON PIN,45mm OD x 91mm L

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9a

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9a

J924449

SHIM,1.000mm Thk

(.040")

1шт.

84145656

CONNECTING ROD

New, Inc. 10 - 13

6шт.

84145656R

REMAN-CONNECTING ROD

Remanufactured, Inc. 10 - 13

6шт.

84145656C

CORE-ROD CONNECTING

Return Part Number, Core Connecting Rod

6шт.

84487529R

REMAN-CONNECTING ROD

MAGNUM 255 (1/06-), Reman for New P/N 84145656

6шт.

84487529C

CORE-ROD CONNECTING

Return Part Number

6шт.

10

NSS

NOT SOLD SEPARAT

Rod

1шт.

11

87687031

BUSHING,45.02mm ID x 49.01mm OD x 43mm L

1шт.

12

J944679

BOLT

2шт.

13

J934864

NUT

2шт.

14

87443389

BEARING LINER

Standard

6шт.

14

87443529

BEARING LINER

Undersize 0,25 mm

6шт.

14

87443532

BEARING LINER

Undersize 0,50 mm

6шт.

14

87443533

BEARING LINER

Undersize 0,75 mm

6шт.

14

87443534

BEARING LINER

Undersize 1,00 mm

6шт.
