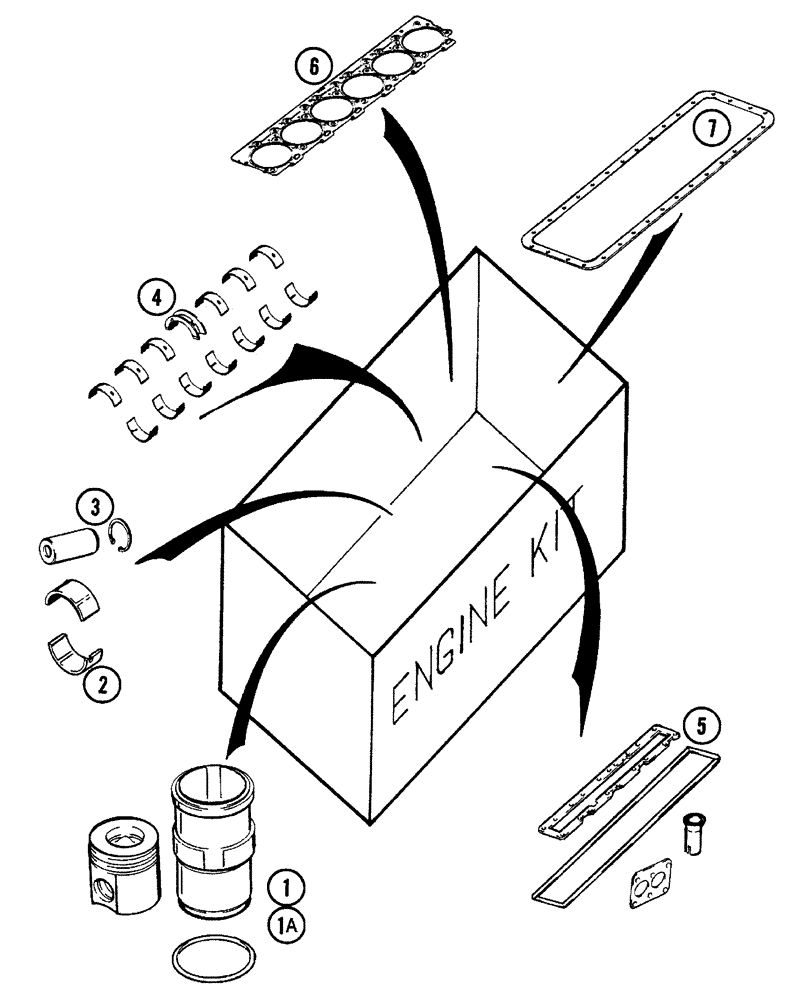

Запчасти Case IH MAGNUM 255 (02-23) - KIT ENGINE OVERHAUL (02) - ENGINE

A78017

REPAIR KIT

Inc. 1 - 8

1шт.

1

A77912

PACKAGE, REPAIR

6шт.

See Figure 02-26

1шт.

2

87443389

BEARING LINER

Connecting Rod, Standard

6шт.

See Figure 02-26

1шт.

3

J934046

PISTON PIN,45mm OD x 91mm L

Piston

6шт.

See Figure 02-26

1шт.

4

J945930

BEARING SET

Standard

6шт.

See Figure 02-24

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-24

1шт.

6

A77976

GASKET KIT

Valve Grind

1шт.

See Figure 02-27

1шт.

7

J938267

CYLINDER HEAD GASKET,2.01mm Thk

1шт.

8

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

See Figure 02-16

1шт.
