Запчасти Case IH MAGNUM 255 (02-22) - CYLINDER BLOCK (02) - ENGINE

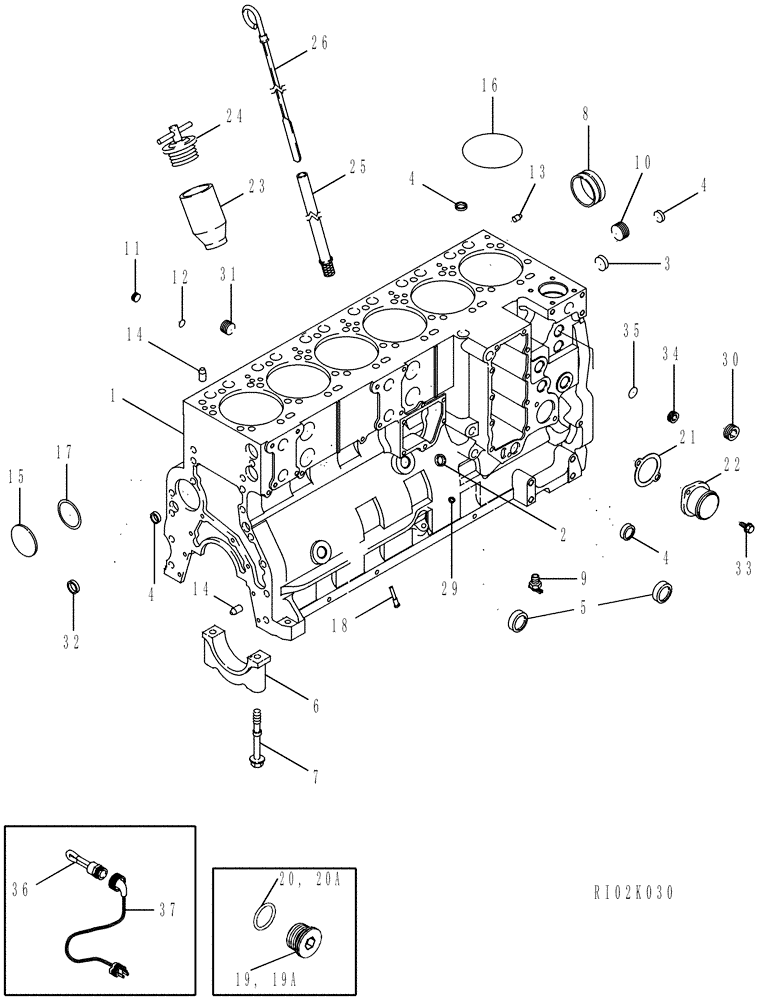

Схема запчастей Case IH MAGNUM 255 - (02-22) - CYLINDER BLOCK (02) - ENGINE
16
10
3
36
4
25
12
23
4
14
8
34
5
37
30
1
4
7
26
24
9
22
2
31
13
4
15
21
ri02k030
17
18
32
29
11
6
14
33
35

Артикул

Название

Примечание

Количество

86993060

BASIC ENGINE

1шт.

Complete Engine, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe.

1шт.

87410984R

EXCHANGE ENGINE

Remanufatured

1шт.

Complete Engine, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe.

1шт.

87401152

ENGINE

1шт.

Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note

1шт.

87411285

BLOCK

Short, Inc. 1 - 8

1шт.

Stripped Short Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

87411285R

REMAN-SHORT ENGINE

Short Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

87411285C

CORE-ENGINE

Return Number

1шт.

1

87444562

BASIC BLOCK

Stripped, Also Order 87444569, Inc. 3 - 8

1шт.

2

J920706

PLUG

22 mm

1шт.

3

A77586

PLUG

28.9 mm

2шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

87444056

BEARING CAP,159 mm OD x 34 mm

7шт.

7

87444059

BOLT

M14 x 128

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.

See Figure 02-21

1шт.

87444569

SERVICE KIT

Inc. 9 - 20

1шт.

9

217-103

COCK, DRAIN

1/4 PT

1шт.

10

217-443

PLUG,Hex Soc, 1" - 11-1/2 NPTF

1шт.

11

J678923

PLUG,M10 x 1

10 mm, Inc. 12

6шт.

12

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

6шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J901846

PIN,12.01mm OD x 24mm L

4шт.

15

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

18

J928031

NOZZLE,8.5mm OD x 30mm L

12шт.

19

J678921

PLUG

14 mm, Inc. 20

2шт.

19a

87708865

PLUG,M42 x 2

42 mm, Inc. 20A

1шт.

20

J678912

O-RING,2.2mm Thk x 11.3mm ID

2шт.

20a

NSS

NOT SOLD SEPARAT

O-RING

1шт.

21

J945603

GASKET,1.65mm Thk

Water Inlet

1шт.

22

J944720

HYD CONNECTOR

Water Inlet (If Equipped)

1шт.

22

87415507

TUBE,548, 344 mm L

Water Inlet (If Equipped), Not Shown

1шт.

23

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

1шт.

24

J934480

FILLER CAP

1шт.

25

87366160

TUBE,.375" OD

1шт.

26

J937417

DIPSTICK

1шт.

29

J943808

PLUG

13 mm

1шт.

30

217-441

PLUG,Hex Soc, 3/4" - 14 NPTF

1шт.

31

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

2шт.

32

J920443

PLUG

30 mm

2шт.

33

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

34

313244A1

PLUG

Hex Socket, 22 mm, Inc. 35

1шт.

35

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2,2 mm

1шт.

36

310494A1

KIT

Coolant Heater, 240V, Inc. 37

1шт.

37

J913112

WIRE HARNESS

305 mm (12")

1шт.

38

369929A1

FASTENER

(Not Shown)

3шт.

Install In Block Behind Starter

1шт.
