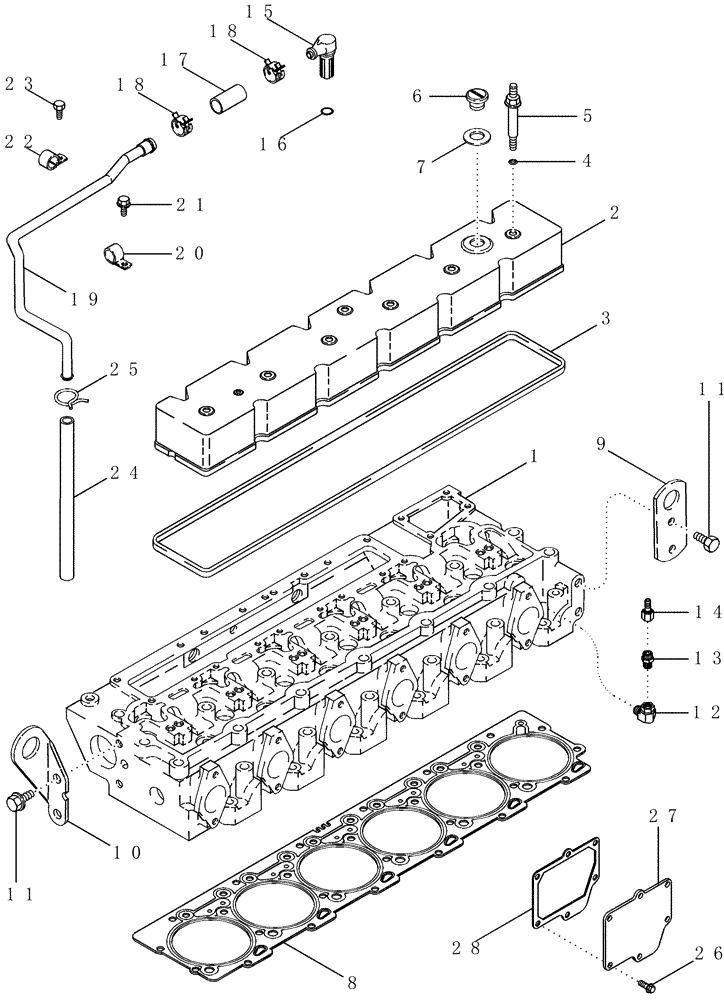

Запчасти Case IH MAGNUM 255 (02-18) - CYLINDER HEAD - COVER (02) - ENGINE

1

REF

INSTRUCTION

Head

1шт.

See Figure 02-19

1шт.

2

J930903

VALVE COVER

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

6шт.

5

J922639

STUD

6шт.

6

J902468

FILLER CAP,Male

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

1шт.

8

J938267

CYLINDER HEAD GASKET,2.01mm Thk

1шт.

9

J944290

BRACKET

1шт.

10

J906440

LIFTING EYE

1шт.

11

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

4шт.

12

105422

ELBOW UNION

Union Elbow 1/8 PT x fem PT

1шт.

13

J911901

VALVE, CHECK

1шт.

14

J911925

COUPLING

1шт.

15

J935113

ELBOW

1шт.

16

J936331

SEAL,17.7mm ID x 22.74mm OD x 3.5mm Thk

1шт.

17

J930827

HOSE,51.00 mm

1шт.

18

J937613

HOSE CLAMP

2шт.

19

87309036

VENTILATION PIPE,15.90, 19.00 mm OD

1шт.

20

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

1шт.

21

J912072

SELF-TAP SCREW

M8 st x 15

1шт.

22

A77538

CLIP

1шт.

23

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

24

413826A1

HOSE

1шт.

25

214-1314

HOSE CLAMP,#14, 7/8", Spring

1шт.

26

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16 mm; 10.9

6шт.

27

87413814

COVER

1шт.

28

87436828

GASKET

1шт.
