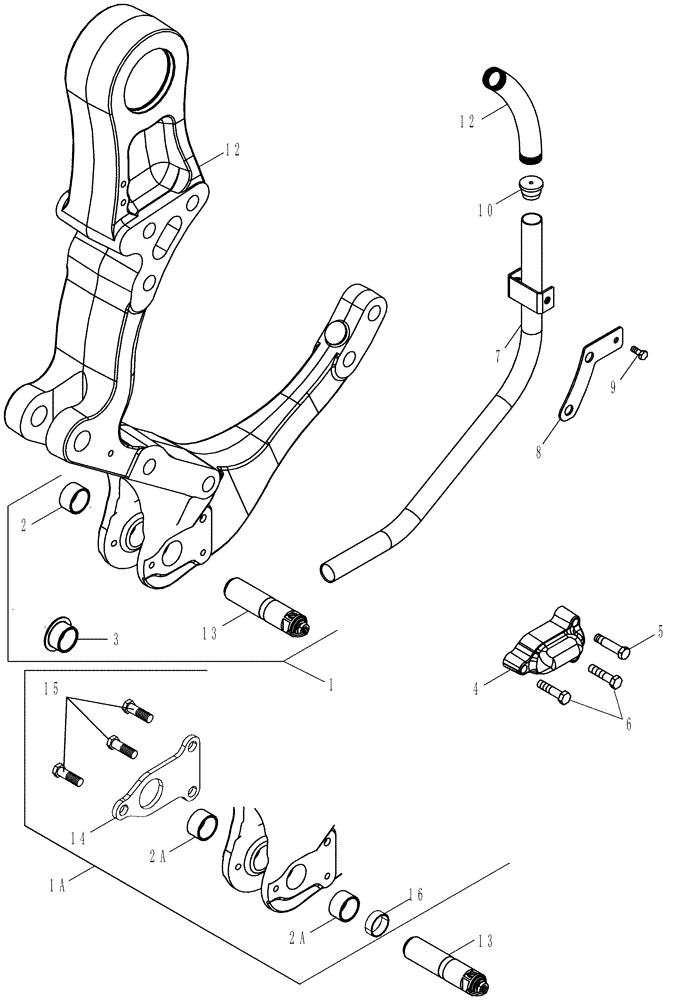

Запчасти Case IH MAGNUM 255 (09-52) - HITCH - DRAFT CONTROL PINS (09) - CHASSIS/ATTACHMENTS

1

322022A1

KIT

Repair, If Equipped, Incl 2 - 3, 13

2шт.

1a

84175642

KIT

Repair, If Equipped, Incl. 2A, 14 - 16

2шт.

2

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

2шт.

2a

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

4шт.

3

303550A1

BUSHING,37.15mm ID x 57.15mm OD x 26mm L

2шт.

4

87365144

COVER

2шт.

5

225643A1

BOLT,Shldr, Hex, M12 x 1.75 x 56mm

2шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

7

236897A2

TUBE

2шт.

8

229904A2

SUPPORT

2шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

10

1960765C2

GROMMET

2шт.

11

302887A5

BRACKET

2шт.

12

326827A1

SLEEVE

2шт.

13

87351611

SENSOR

Pin, Draft Control

1шт.

14

84155706

COVER

2шт.

15

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

6шт.

16

84157530

SPACER,37.4mm ID x 42.25mm OD x 15.5mm L

2шт.
