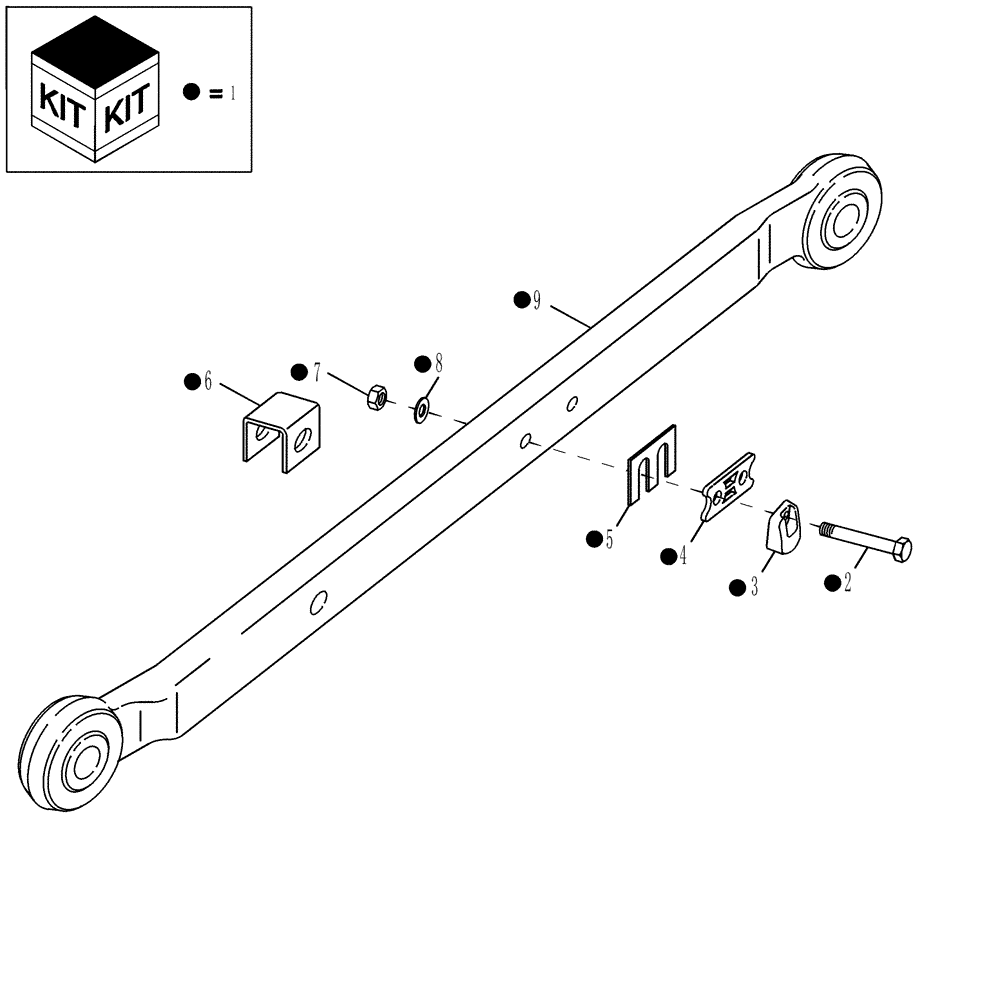

Запчасти Case IH MAGNUM 255 (09-50) - HITCH - LOWER LIFT LINKS (09) - CHASSIS/ATTACHMENTS

1

87314210

LOWER LINK

KIT, long

1шт.

2

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

4шт.

3

301248A2

BUMPER

2шт.

4

301927A1

SPACER

2шт.

5

189946A1

SHIM,76mm OD x 1.03mm Thk

4шт.

6

293002A1

SPACER

2шт.

7

832-10420

NUT,M20 x 2.5, Cl 8

4шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

433469A1

LOWER LINK

Long Draft Arms, 1094 mm (43 in) Center To Center

2шт.
