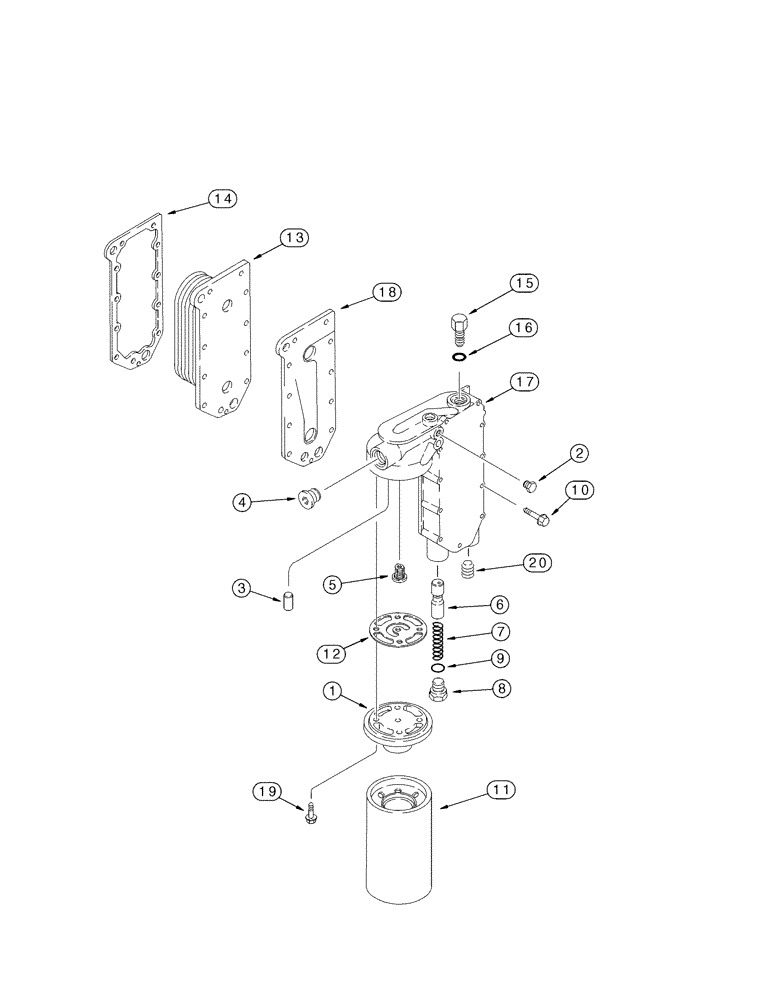

Запчасти Case IH MAGNUM 255 (02-16) - FILTER AND COOLER - OIL (02) - ENGINE

1

J918334

FILTER HEAD

1шт.

2

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

1шт.

4

217-441

PLUG,Hex Soc, 3/4" - 14 NPTF

1шт.

5

J936365

VALVE PRESSURE RELIE

1шт.

6

J945967

PLUNGER

1шт.

7

A77541

SPRING

1шт.

8

J931084

PLUG

24 mm, Inc. 9

1шт.

9

J930911

O-RING,0.07" Thk x 0.8" ID

3/4 ID x 1/16

1шт.

10

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

M8 x 65, 10.9

11шт.

11

J919562

ENGINE OIL FILTER

1шт.

12

87447957

GASKET,1.2mm Thk

1шт.

13

87453888

CORE, RADIATOR

1шт.

14

J918174

GASKET,0.71mm Thk

1шт.

J934410

BY-PASS VALVE

Inc. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

16

A77724

O-RING,3.05mm Thk x 23.62mm ID

1шт.

17

87314031

COVER

1шт.

18

J4063496

GASKET,0.8mm Thk

1шт.

19

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

4шт.

20

221-1034

PLUG,Sq Soc, 1/2" MPTF

1шт.
